CM30-25 Series
Manufacturer: SICK, Inc.
Beta
⌘K

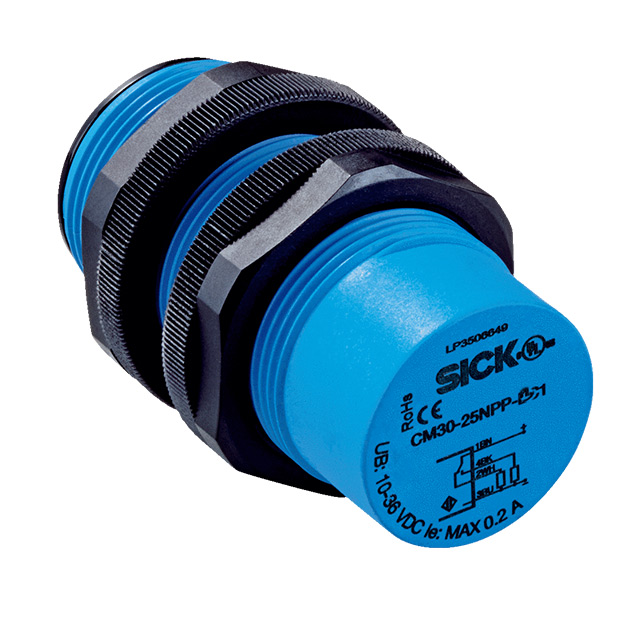

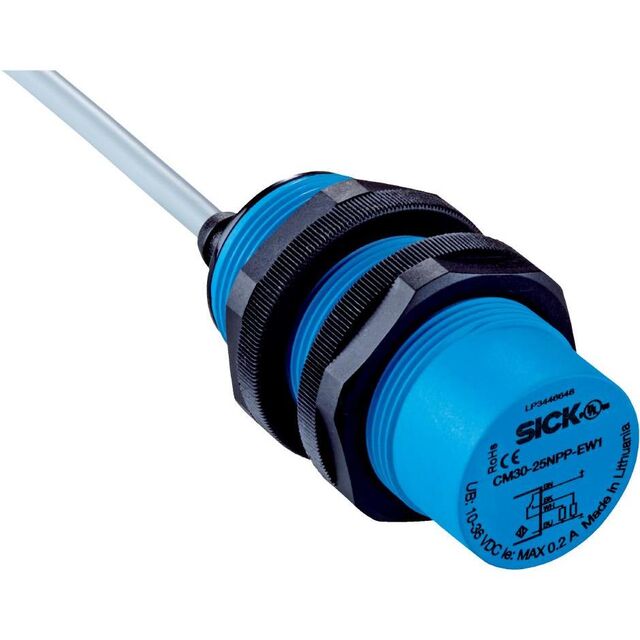

SENSOR PROX CAP 4MM-25MM CYLIND
| Part | Sensor Type | Shielding | Response Frequency | Indicator | Voltage - Supply [Max] | Voltage - Supply [Min] | Output Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Package / Case | Material - Body | Sensing Distance [Min] | Sensing Distance [Max] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SICK, Inc. | Capacitive | Shielded | 50 Hz | No Indicator | 36 V | 10 VDC | 4-Wire PNP-NC/NO | 85 °C | -30 °C | Cable Leads | Cylinder Threaded - M30 | Plastic | 0.157 " 4 mm | 0.984 " 25 mm | IP68 IP69K |
 SICK, Inc. | Capacitive | Shielded | 50 Hz | No Indicator | 36 V | 10 VDC | 4-Wire NPN-NC/NO | 85 °C | -30 °C | Cable Leads | Cylinder Threaded - M30 | Plastic | 0.157 " 4 mm | 0.984 " 25 mm | IP68 IP69K |
 SICK, Inc. | Capacitive | Unshielded | 50 Hz | LED | 36 V | 10 VDC | 4-Wire PNP-NC | 85 °C | -30 °C | Connector | Cylinder Threaded - M30 | Plastic | 0.157 " 4 mm | 0.984 " 25 mm | IP68 IP69K |
