431100 Series

Catalog

CONN BARRIER STRIP 2CIRC 0.438"

Part	Terminal Screw Material	Operating Temperature	Mounting Type	Material Flammability Rating	Terminal Screw Finish	Material - Insulation	Number of Rows	Pitch [x]	Pitch [x]	Current Rating (Amps)	Bottom Termination	Wire Gauge [Max]	Wire Gauge [Min]	Voltage Rating	Terminal Block Type	Top Termination	Number of Circuits	Number of Wire Entries	Barrier Type	Number of Wire Entries [custom]

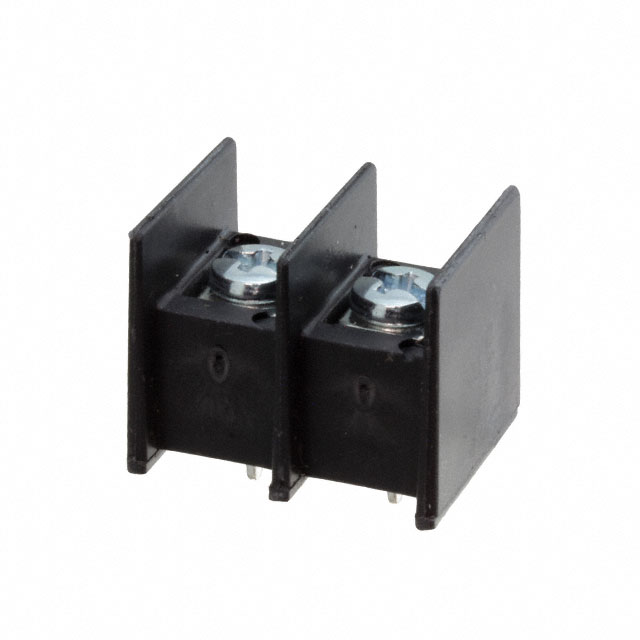

Curtis Industries 431100-02-0	Steel	105 C	Through Hole	UL94 V-0	Zinc	Polypropylene (PP)	1	0.438 in	11.12 mm	20 A	PC Pin	22 AWG	12 AWG	600 V	Barrier Block	Screws	2	2	2 Wall (Dual)
Curtis Industries 431100-18-0	Steel	105 C	Through Hole	UL94 V-0	Zinc	Polypropylene (PP)	1	0.438 in	11.12 mm	20 A	PC Pin	22 AWG	12 AWG	600 V	Barrier Block	Screws	18	18	2 Wall (Dual)
Curtis Industries 431100-17-0	Steel	105 C	Through Hole	UL94 V-0	Zinc	Polypropylene (PP)	1	0.438 in	11.12 mm	20 A	PC Pin	22 AWG	12 AWG	600 V	Barrier Block	Screws	17	17	2 Wall (Dual)
Curtis Industries 431100-21-0	Steel	105 C	Through Hole	UL94 V-0	Zinc	Polypropylene (PP)	1	0.438 in	11.12 mm	20 A	PC Pin	22 AWG	12 AWG	600 V	Barrier Block	Screws	21	21	2 Wall (Dual)

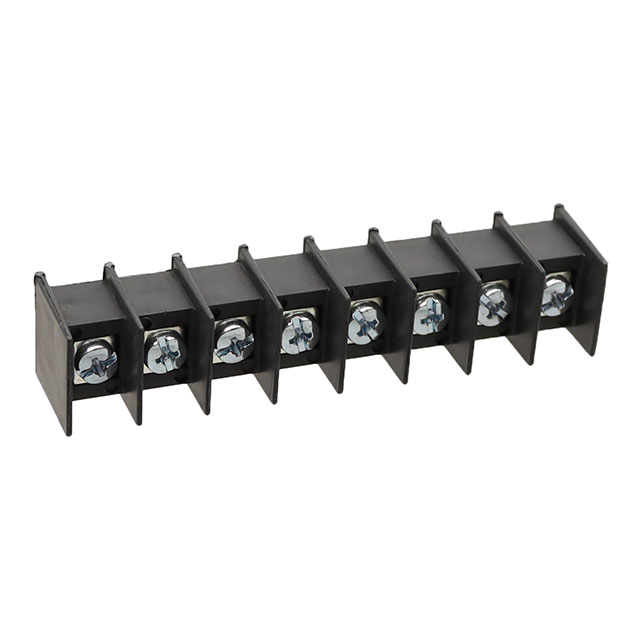

Curtis Industries 431100-08-0	Steel	105 C	Through Hole	UL94 V-0	Zinc	Polypropylene (PP)	1	0.438 in	11.12 mm	20 A	PC Pin	22 AWG	12 AWG	600 V	Barrier Block	Screws	8	8	2 Wall (Dual)
Curtis Industries 431100-16-0	Steel	105 C	Through Hole	UL94 V-0	Zinc	Polypropylene (PP)	1	0.438 in	11.12 mm	20 A	PC Pin	22 AWG	12 AWG	600 V	Barrier Block	Screws	16	16	2 Wall (Dual)

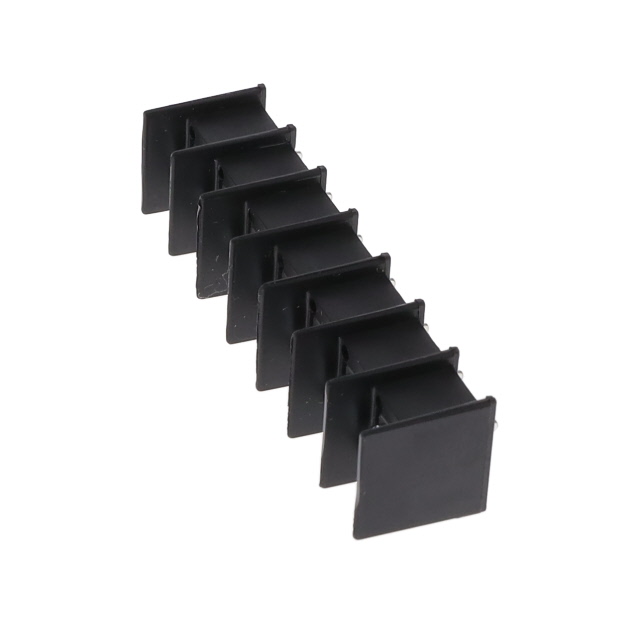

Curtis Industries 431100-07-0	Steel	105 C	Through Hole	UL94 V-0	Zinc	Polypropylene (PP)	1	0.438 in	11.12 mm	20 A	PC Pin	22 AWG	12 AWG	600 V	Barrier Block	Screws	7		2 Wall (Dual)	7

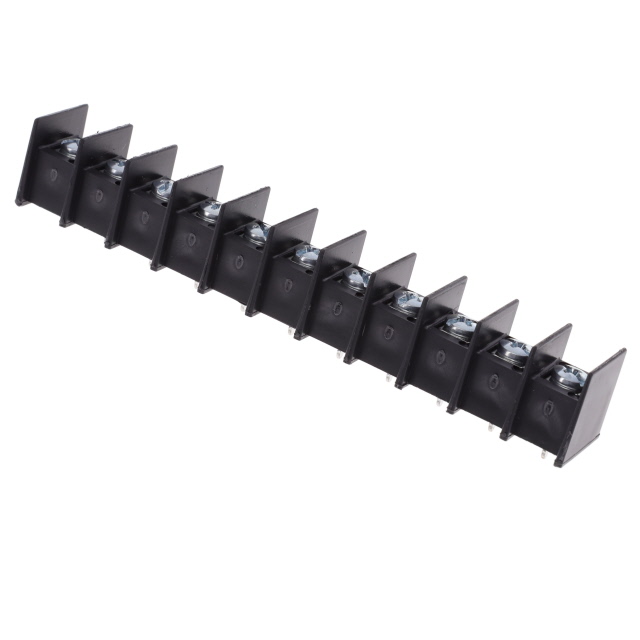

Curtis Industries 431100-11-0	Steel	105 C	Through Hole	UL94 V-0	Zinc	Polypropylene (PP)	1	0.438 in	11.12 mm	20 A	PC Pin	22 AWG	12 AWG	600 V	Barrier Block	Screws	11	11	2 Wall (Dual)

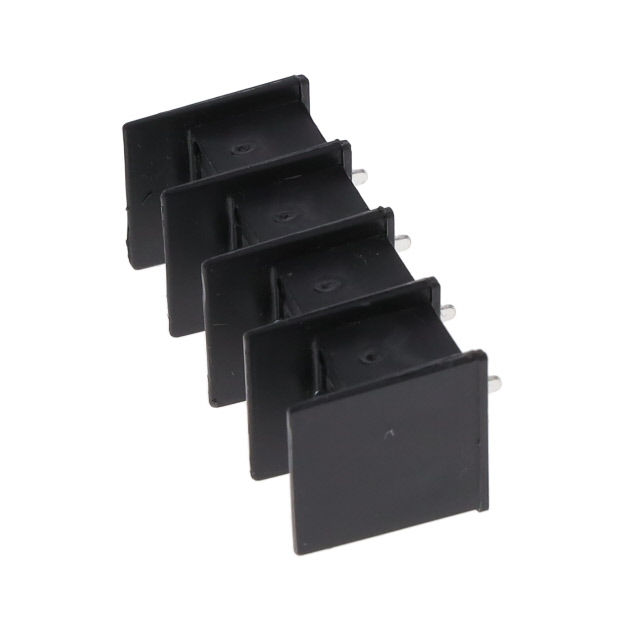

Curtis Industries 431100-04-0	Steel	105 C	Through Hole	UL94 V-0	Zinc	Polypropylene (PP)	1	0.438 in	11.12 mm	20 A	PC Pin	22 AWG	12 AWG	600 V	Barrier Block	Screws	4	4	2 Wall (Dual)
Curtis Industries 431100-24-0	Steel	105 C	Through Hole	UL94 V-0	Zinc	Polypropylene (PP)	1	0.438 in	11.12 mm	20 A	PC Pin	22 AWG	12 AWG	600 V	Barrier Block	Screws	24		2 Wall (Dual)
