B51-053 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K

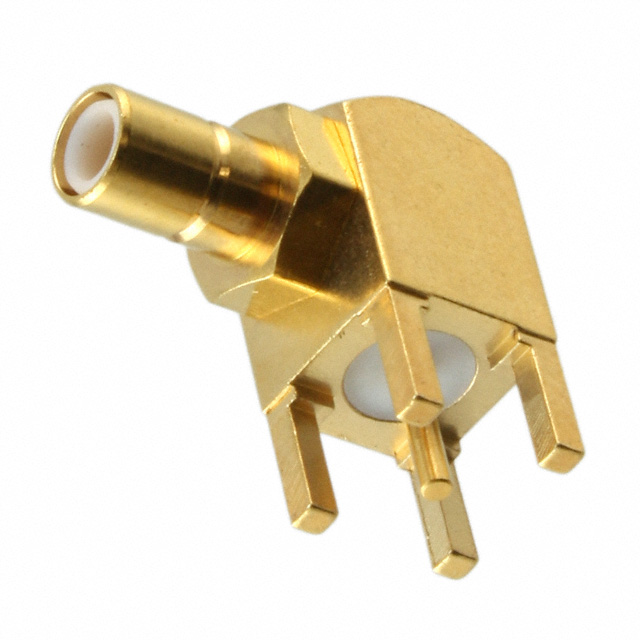

CONN SMB RCP 0HZ TO 4GHZ 50OHM SOLDER RA THRU-HOLE GOLD
| Part | Mating Cycles | Insertion Loss | Dielectric Material | Center Contact Plating | Body Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Center Contact Material | Fastening Type | Shield Termination | Impedance | Number of Ports | Connector Style | Contact Termination | Housing Color | Mounting Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | 500 | 0.25 dB | Polytetrafluoroethylene (PTFE) | Gold | Brass | Gold | -65 ░C | 165 °C | Jack Male Pin | Brass | Snap-On | Solder | 50 Ohms | 1 | SMB | Solder | Gold | Right Angle Through Hole | 4 GHz |
 ITT Cannon, LLC | 500 | 0.25 dB | Polytetrafluoroethylene (PTFE) | Gold | Brass | Gold | -65 ░C | 165 °C | Jack Male Pin | Beryllium Copper | Snap-On | Solder | 50 Ohms | 1 | SMB | Solder | Gold | Right Angle Through Hole | 4 GHz |
