54AAD Series
Manufacturer: Bourns Inc.
Beta
⌘K

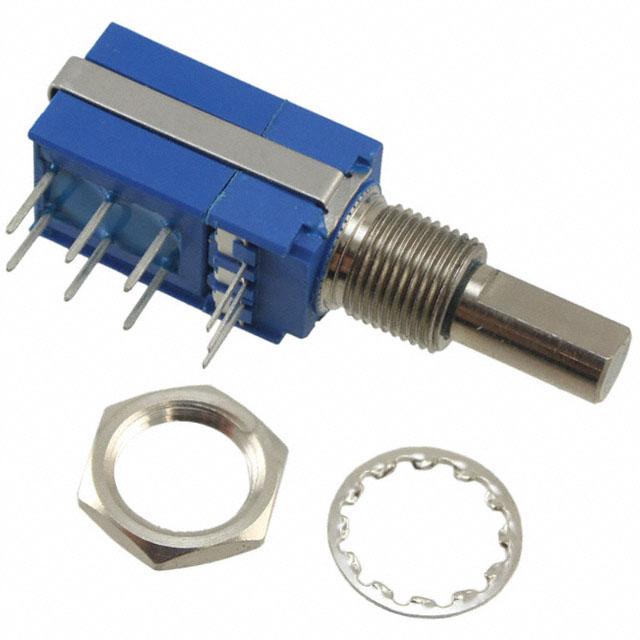

POT 5K OHM 1/2W PLASTIC LINEAR
| Part | Actuator Type | Power (Watts) | Power (Watts) | Resistance (Ohms) | Number of Gangs | Resistive Material | Number of Turns | Termination Style | Taper | Built in Switch | Size - Body [x] | Size - Body [x] | Size - Body [y] | Size - Body [y] | Mounting Type | Rotation | Temperature Coefficient | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Actuator Length [x] | Actuator Length [x] | Bushing Thread | Adjustment Type | Tolerance | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Flatted | 0.5 W | 0.5 W | 5 kOhms | 1 | Conductive Plastic | 1 | PC Pins | Linear | Push-Pull DPDT | 0.521 " | 13.24 mm | 0.492 " | 12.5 mm | Panel Mount | 290 ° | 1000 ppm/°C | 6.35 mm | 0.25 in | 0.875 in | 22.23 mm | 3/8-32 | Side Adjustment | 20 % | |
Bourns Inc. | Flatted | 0.5 W | 0.5 W | 1 | Conductive Plastic | 1 | PC Pins | Linear | Push-Pull DPDT | 0.521 " | 13.24 mm | 0.492 " | 12.5 mm | Panel Mount | 290 ° | 1000 ppm/°C | 6.35 mm | 0.25 in | 0.875 in | 22.23 mm | 3/8-32 | Side Adjustment | 20 % | 10k |
