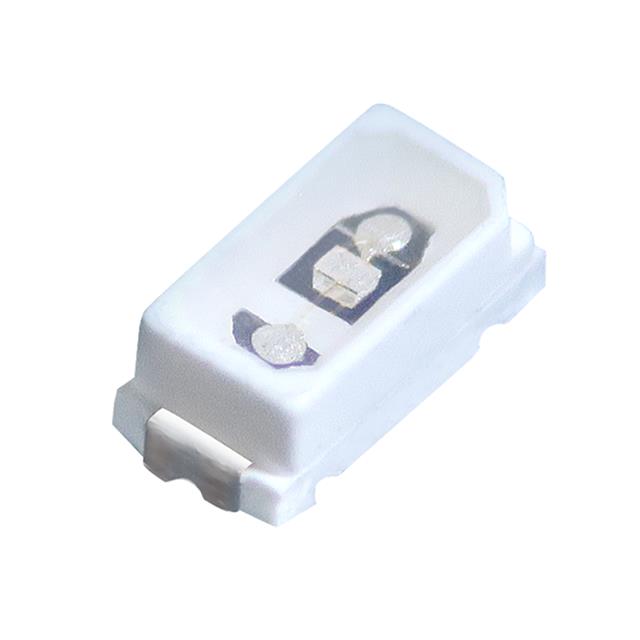

AA1608 Series
Manufacturer: Kingbright
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
LED UNI-COLOR RED 645NM 2-PIN SMD T/R
| Part | Package / Case | Lens Transparency | Package Name | Color | Lens Style | Wavelength - Peak | Wavelength - Dominant | Voltage - Forward (Vf) (Typ) | Size / Dimension Width | Size / Dimension Length | Current - Test | Millicandela Rating | Viewing Angle | Lens Color | Height (Max) | Mounting Type | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kingbright | 0603 (1608 Metric) | Clear | 0603 | Red | Flat Top Rectangle | 645 nm | 630 nm | 1.95 V | 0.8 mm | 1.6 mm | 20 mA | 480 mcd | 120 ° | Colorless | 0.7 mm | Surface Mount | |
 Kingbright | 0603 (1608 Metric) | Clear | 0603 | Green | Flat Top Oval | 515 nm | 525 nm | 2.65 V | 0.8 mm | 1.6 mm | 2 mA | 140 mcd | 120 ° | Colorless | 0.7 mm | Surface Mount | Independent |
Kingbright | 0603 (1608 Metric) | Clear | 0603 | Green | Flat Top Rectangle | 574 nm | 570 nm | 2.1 V | 0.8 mm | 1.6 mm | 20 mA | 75 mcd | 120 ° | Colorless | 0.7 mm | Surface Mount | |
 Kingbright | 0603 (1608 Metric) | Clear | 0603 | Blue | Flat Top Rectangle | 463 nm | 468 nm | 3 V | 0.8 mm | 1.6 mm | 10 mA | 160 mcd | 120 ° | Colorless | 0.7 mm | Surface Mount |
