001010 Series

Manufacturer: Molex

Catalog

CONN RCPT 11POS 0.2 TIN EDGE MNT

Part	Insulation Material	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Shape	Contact Finish - Post	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Insulation Height [custom]	Insulation Height [custom]	Material Flammability Rating	Number of Positions	Style	Features	Termination	Number of Positions Loaded	Insulation Color	Voltage Rating	Pitch - Mating	Pitch - Mating	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Current Rating (Amps)	Contact Length - Post [custom]	Contact Length - Post	Insulation Height	Insulation Height
Molex 0010101111	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	Phosphor Bronze	Square	Tin	5 A	0.17 in	4.32 mm	1	0.236 "	6 mm	UL94 V-2	11	Board to Board Cable	Board Hooks	Solder	All	Natural	250 V	0.2 "	5.08 mm	Push-Pull	Receptacle	-40 C	105 ░C	Board Edge Right Angle Through Hole	100 çin	2.54 çm	Non-Gendered

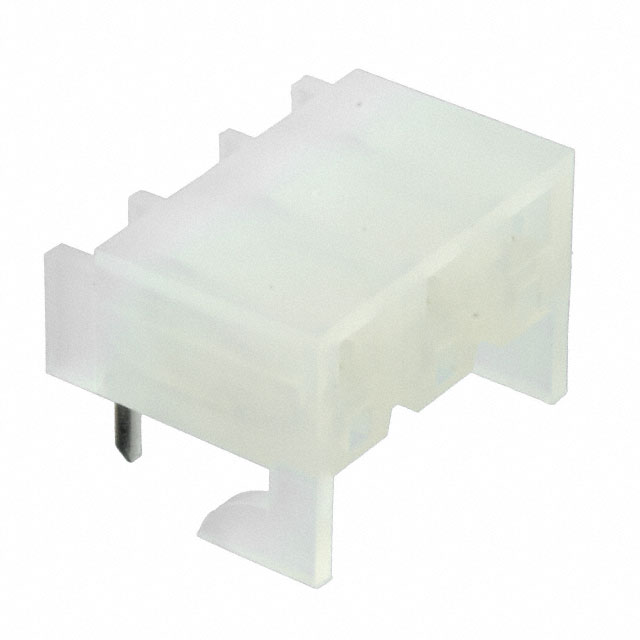

Molex 0010101031	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	Phosphor Bronze	Square	Tin	5 A	0.17 in	4.32 mm	1	0.236 "	6 mm	UL94 V-2		Board to Board Cable	Board Hooks	Solder	All	Natural	250 V	0.2 "	5.08 mm	Push-Pull	Receptacle	-40 C	105 ░C	Board Edge Right Angle Through Hole	100 çin	2.54 çm	Non-Gendered
Molex 0010101041	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	Phosphor Bronze	Square	Tin	5 A	0.17 in	4.32 mm	1	0.236 "	6 mm	UL94 V-2	4	Board to Board Cable	Board Hooks	Solder	All	Natural	250 V	0.2 "	5.08 mm	Push-Pull	Receptacle	-40 C	105 ░C	Board Edge Right Angle Through Hole	100 çin	2.54 çm	Non-Gendered
Molex 0010101101	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	Phosphor Bronze	Square	Tin	5 A	0.17 in	4.32 mm	1	0.236 "	6 mm	UL94 V-2	10	Board to Board Cable	Board Hooks	Solder	All	Natural	250 V	0.2 "	5.08 mm	Push-Pull	Receptacle	-40 C	105 ░C	Board Edge Right Angle Through Hole	100 çin	2.54 çm	Non-Gendered
Molex 0010101071	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	Phosphor Bronze	Square	Tin	5 A	0.17 in	4.32 mm	1	0.236 "	6 mm	UL94 V-2	7	Board to Board Cable	Board Hooks	Solder	All	Natural	250 V	0.2 "	5.08 mm	Push-Pull	Receptacle	-40 C	105 ░C	Board Edge Right Angle Through Hole	100 çin	2.54 çm	Non-Gendered
Molex 0010101121	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	Phosphor Bronze	Square	Tin		0.17 in	4.32 mm	1	0.236 "	6 mm	UL94 V-2	12	Board to Board Cable	Board Hooks	Solder	All	Natural	250 V	0.2 "	5.08 mm	Push-Pull	Receptacle	-40 C	105 ░C	Board Edge Right Angle Through Hole	100 çin	2.54 çm	Non-Gendered	Varies by Wire Gauge

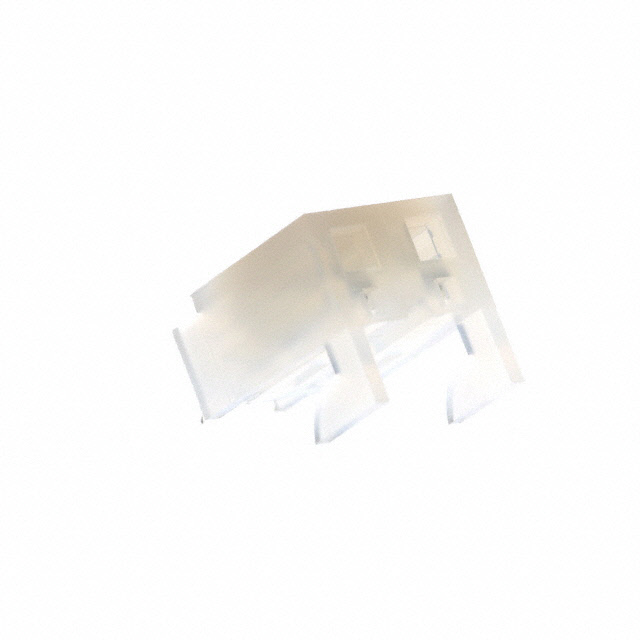

Molex 0010101023	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	Phosphor Bronze	Square	Tin	5 A			1			UL94 V-2	2	Board to Board Cable	Board Hooks	Solder	All	Natural	250 V	0.2 "	5.08 mm	Push-Pull	Receptacle	-40 C	105 ░C	Through Hole	100 çin	2.54 çm	Non-Gendered		0.11 in	2.79 mm	11.5 mm	0.453 in
