SRD1-2A Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH ROCKER DPST 21A 14V
| Part | Electrical Life | Mechanical Life | Actuator Type | Voltage Rating - DC | Circuit | Actuator Marking | Termination Style | Color - Actuator/Cap | Illumination Voltage (Nominal) | Ingress Protection | Current Rating (Amps) | Mounting Type | Switch Function | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Illumination Type, Color | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

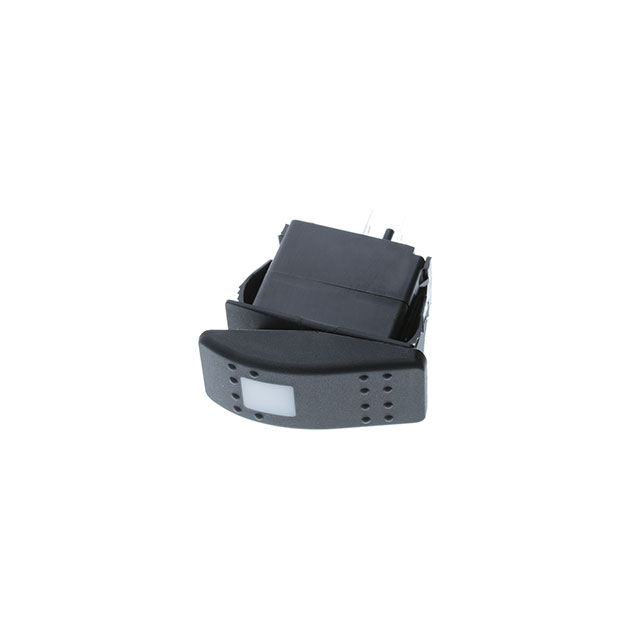

 Switch Components | 6000 Cycles | 10000 Steps | Convex (Reverse V) - Illuminated | 14 V | DPST | No Marking | Quick Connect - 0.250" (6.3mm) | Black | 14 VDC | IP56 - Dust Protected Water Resistant | 21 A | Panel Mount Snap-In | On-Off | 36.8 mm | 21.2 mm | Amber LED | 85 °C | -25 °C | |

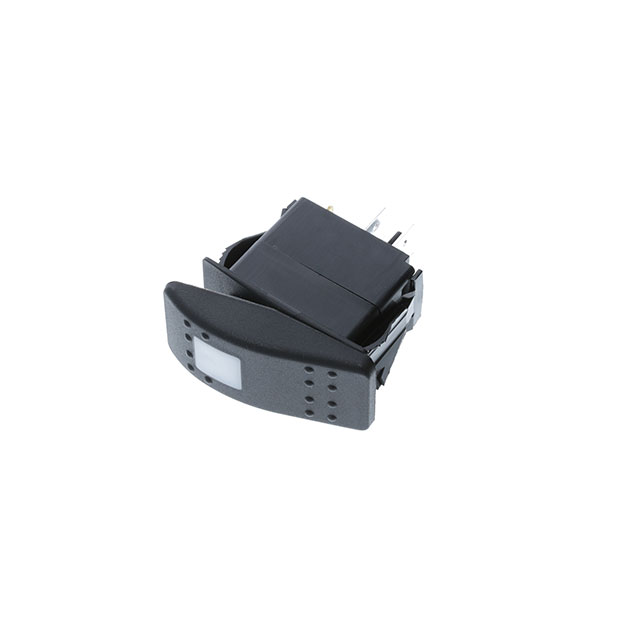

 Switch Components | 6000 Cycles | 10000 Steps | Convex (Reverse V) - Illuminated | 14 V | DPST | No Marking | Quick Connect - 0.250" (6.3mm) | Black | 14 VDC | IP56 - Dust Protected Water Resistant | 21 A | Panel Mount Snap-In | On-Off | 36.8 mm | 21.2 mm | Green LED | 85 °C | -25 °C | |

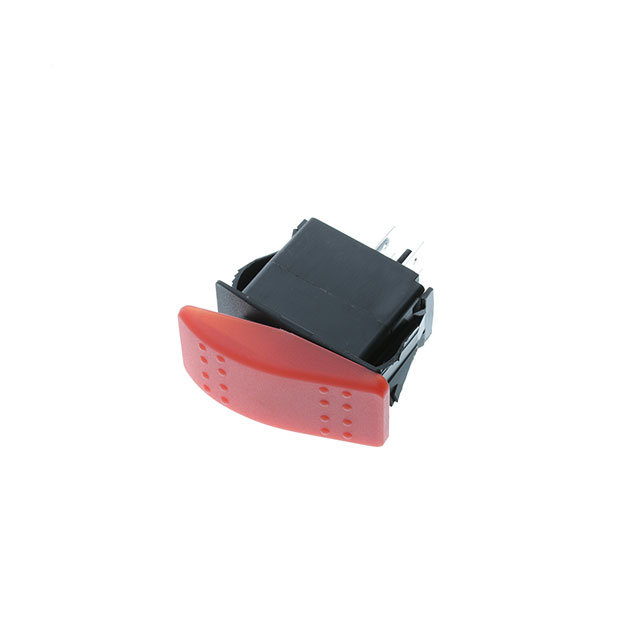

 Switch Components | 6000 Cycles | 10000 Steps | Convex (Reverse V) | 14 V | DPST | No Marking | Quick Connect - 0.250" (6.3mm) | Red | IP56 - Dust Protected Water Resistant | 20 A 21 A | Panel Mount Snap-In | On-Off | 36.8 mm | 21.2 mm | 85 °C | -25 °C | 125 V |
