INA219 Series

26-V 12-bit I2C output digital power monitor

Catalog

26-V 12-bit I2C output digital power monitor

Part	Supplied Contents	Utilized IC / Part	Function	Contents	Type	Primary Attributes	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Accuracy	Current - Output	Supplier Device Package	Sensing Method	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case	Package / Case [y]	Package / Case [x]

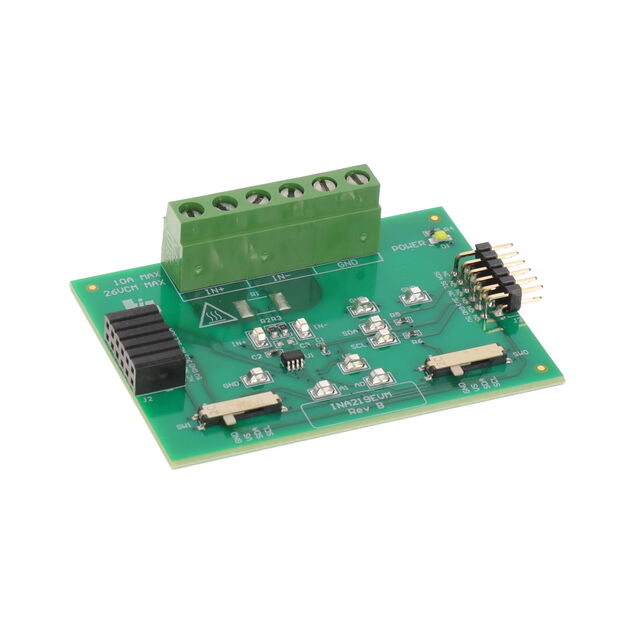

Texas Instruments INA219EVM	Board(s) Cable(s)	INA219	Current Monitor	Board(s) Cable(s)	Power Management	Current Shunt Monitor
Texas Instruments INA219BIDR			Current Monitor				125 °C	-40 °C	Surface Mount	0.5 %	10 mA	8-SOIC	High-Side	0 V	26 V	8-SOIC	3.9 mm	0.154 in
Texas Instruments INA219AIDR			Current Monitor				125 °C	-40 °C	Surface Mount	1 %	10 mA	8-SOIC	High-Side	0 V	26 V	8-SOIC	3.9 mm	0.154 in
Texas Instruments INA219BIDCNR			Current Monitor				125 °C	-40 °C	Surface Mount	0.5 %	10 mA	SOT-23-8	High-Side	0 V	26 V	SOT-23-8
Texas Instruments INA219BID			Current Monitor				125 °C	-40 °C	Surface Mount	0.5 %	10 mA	8-SOIC	High-Side	0 V	26 V	8-SOIC	3.9 mm	0.154 in
Texas Instruments INA219AIDCNT			Current Monitor				125 °C	-40 °C	Surface Mount	1 %	10 mA	SOT-23-8	High-Side	0 V	26 V	SOT-23-8
Texas Instruments INA219AIDCNTG4			Current Monitor				125 °C	-40 °C	Surface Mount	1 %	10 mA	SOT-23-8	High-Side	0 V	26 V	SOT-23-8
Texas Instruments INA219AIDCNR			Current Monitor				125 °C	-40 °C	Surface Mount	1 %	10 mA	SOT-23-8	High-Side	0 V	26 V	SOT-23-8

Catalog

26-V 12-bit I2C output digital power monitor

Key Features

• Senses Bus Voltages from 0 to 26 VReports Current, Voltage, and Power16 Programmable AddressesHigh Accuracy: 0.5% (Maximum) OverTemperature (INA219B)Filtering OptionsCalibration RegistersSOT23-8 and SOIC-8 PackagesSenses Bus Voltages from 0 to 26 VReports Current, Voltage, and Power16 Programmable AddressesHigh Accuracy: 0.5% (Maximum) OverTemperature (INA219B)Filtering OptionsCalibration RegistersSOT23-8 and SOIC-8 Packages

Description

The INA219 is a current shunt and power monitor with an I2C- or SMBUS-compatible interface. The device monitors both shunt voltage drop and bus supply voltage, with programmable conversion times and filtering. A programmable calibration value, combined with an internal multiplier, enables direct readouts of current in amperes. An additional multiplying register calculates power in watts. The I2C- or SMBUS-compatible interface features 16 programmable addresses. The INA219 is available in two grades: A and B. The B grade version has higher accuracy and higher precision specifications. The INA219 senses across shunts on buses that can vary from 0 to 26 V. The device uses a single 3- to 5.5-V supply, drawing a maximum of 1 mA of supply current. The INA219 operates from –40°C to 125°C. The INA219 is a current shunt and power monitor with an I2C- or SMBUS-compatible interface. The device monitors both shunt voltage drop and bus supply voltage, with programmable conversion times and filtering. A programmable calibration value, combined with an internal multiplier, enables direct readouts of current in amperes. An additional multiplying register calculates power in watts. The I2C- or SMBUS-compatible interface features 16 programmable addresses. The INA219 is available in two grades: A and B. The B grade version has higher accuracy and higher precision specifications. The INA219 senses across shunts on buses that can vary from 0 to 26 V. The device uses a single 3- to 5.5-V supply, drawing a maximum of 1 mA of supply current. The INA219 operates from –40°C to 125°C.
