MLT8 Series

Catalog

MLT TIE, 316 SS, EXTRA HEAVY, 29.7 (754M ROHS COMPLIANT: YES

Part	Length - Actual [x]	Length - Actual [x]	Tensile Strength	Tensile Strength	Mounting Type	Material	Color	Length - Approximate	Width	Width	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Features	Wire/Cable Tie Type	Width [y]	Width [y]	Width [x]	Width [x]
Panduit Corp MLT8EH15-LP316	2.475 '	754.38 mm	317.52 kg	700 lbs	Free Hanging (In-Line)	Stainless Steel 316	Silver	29.75 in	12.7 mm	0.5 in	8 in	203.2 mm	Corrosion Resistance	Locking Standard

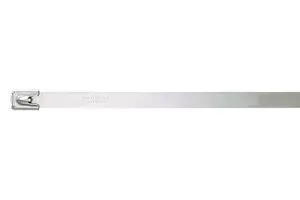

Panduit Corp MLT8H-LP	2.233 ft	680.72 mm	204.12 kg	450 lbs	Free Hanging (In-Line)	Stainless Steel 304	Silver	26.75 in			8 in	203.2 mm	UV Resistant	Locking Standard	0.31 in	7.87 mm
Panduit Corp MLT8DSH-Q316	4.46 ft	1.36 m	544.32 kg	1200 lbs	Free Hanging (In-Line)	Stainless Steel 316	Silver	4.5 ft			8 in	203.2 mm	Corrosion Resistance	Double Wrap Locking			0.625 in	15.88 mm

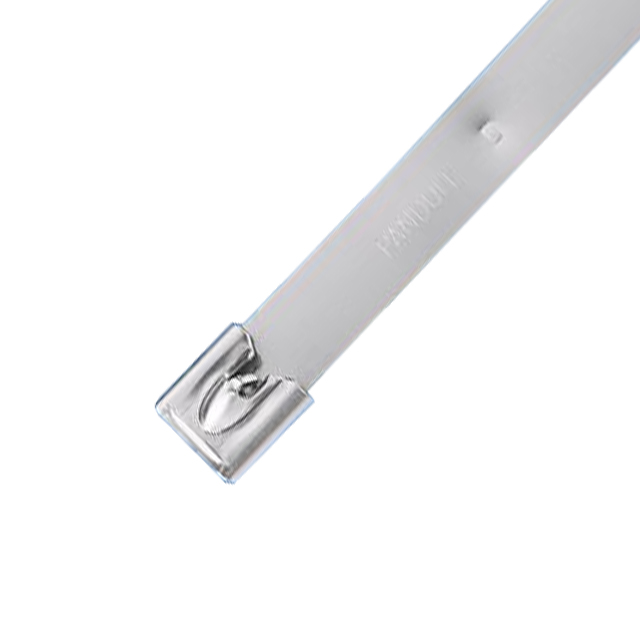

Panduit Corp MLT8EH-LP	2.475 '	754.38 mm	272.16 kg	600 lbs	Free Hanging (In-Line)	Stainless Steel 304	Silver	29.75 in	12.7 mm	0.5 in	8 in	203.2 mm	UV Resistant	Locking Standard

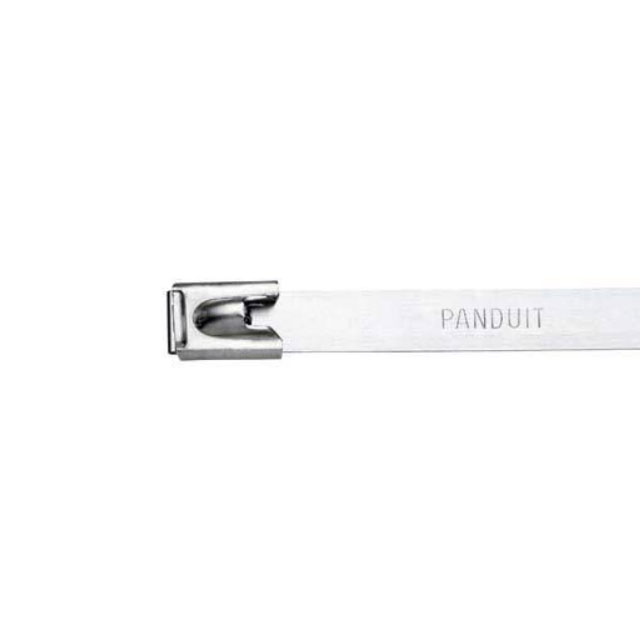

Panduit Corp MLT8H-LP316	2.233 ft	680.72 mm	204.12 kg	450 lbs	Free Hanging (In-Line)	Stainless Steel 316	Silver	26.75 in			8 in	203.2 mm	Corrosion Resistance	Locking Standard	0.31 in	7.87 mm

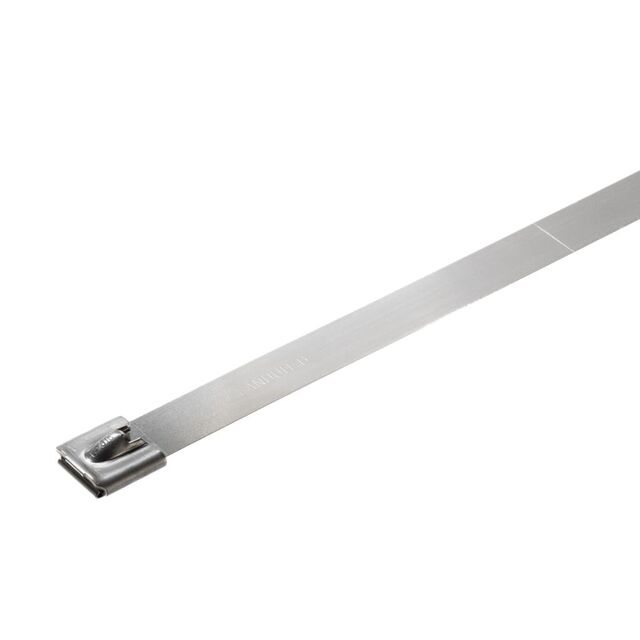

Panduit Corp MLT8DSH-Q	4.46 ft	1.36 m	544.32 kg	1200 lbs	Free Hanging (In-Line)	Stainless Steel 304	Silver	4.5 ft			8 in	203.2 mm		Double Wrap Locking			0.625 in	15.88 mm
