83554 Series
Manufacturer: Belden Inc.
Beta
⌘K

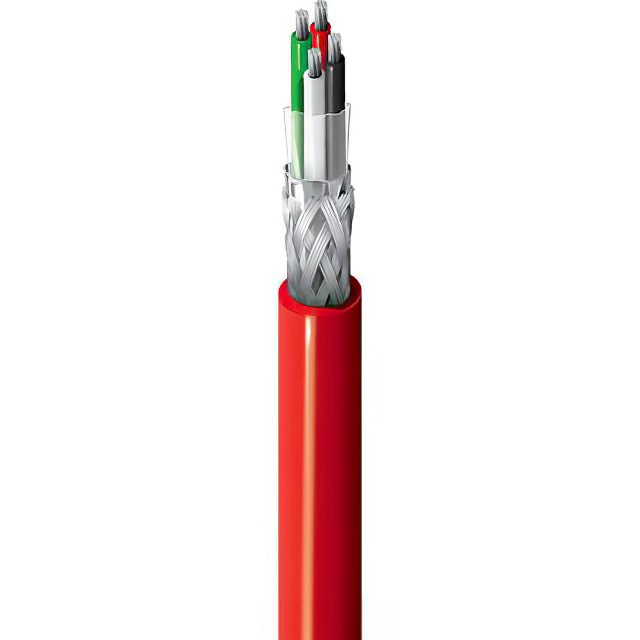

CABLE 4COND 22AWG RED SHLD
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Conductor Material | Usage | Jacket (Insulation) Material | Shield Type | Voltage | Jacket Color | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Length | Length | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 4.04 mm | 0.159 in | 4 | Copper Tinned | Audio Control Instrumentation | Fluorinated Ethylene-Propylene (FEP) Plenum | Braid Foil | 300 VDC | Red | Multi-Conductor | 30 AWG | 7 | 22 AWG | 0.014 in | 0.356 mm | Fluorinated Ethylene-Propylene (FEP) | 304.8 m | 1000 ft | UL Style CMP | -70 °C | 200 °C | ||
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 4.04 mm | 0.159 in | 4 | Copper Tinned | Audio Control Instrumentation | Fluorinated Ethylene-Propylene (FEP) Plenum | Braid Foil | 300 VDC | Red | Multi-Conductor | 30 AWG | 7 | 22 AWG | 0.014 in | 0.356 mm | Fluorinated Ethylene-Propylene (FEP) | UL Style CMP | -70 °C | 200 °C | 100 ft | 30.5 m |
