ISO5500 Series
Manufacturer: Texas Instruments
Beta
⌘K
DRIVER 2.5A 1-OUT INV/NON-INV 16-PIN SOIC TUBE
| Part | Number of Channels | Propagation Delay tpLH / tpHL (Max) [Max] [custom] | Propagation Delay tpLH / tpHL (Max) [Max] [custom] | Technology | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Voltage - Output Supply [Min] | Voltage - Output Supply [Max] | Mounting Type | Package / Case [x] | Package / Case | Package / Case [y] | Current - Output High, Low [custom] | Current - Output High, Low [custom] | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Common Mode Transient Immunity (Min) [Min] | Supplier Device Package | Current - Peak Output | Utilized IC / Part | Function | Supplied Contents | Embedded | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 1 | 300 ns | 300 ns | Capacitive Coupling | 10 ns | 55 ns | 15 V | 30 V | Surface Mount | 0.295 in | 16-SOIC | 7.5 mm | 2.5 A | 2.5 A | 4243 Vrms | 125 °C | -40 °C | CSA UL VDE | 25 kV/µs | 16-SOIC | 2.5 A | |||||

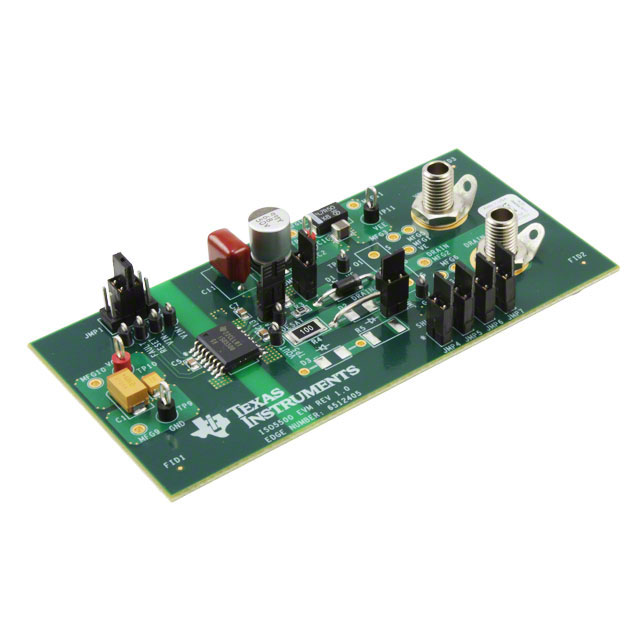

 Texas Instruments | ISO5500 | Gate Driver | Board(s) | Power Management |
