ED700 Series

Catalog

TERM BLK 3POS SIDE ENTRY 5MM PCB

Part	Clamp Material - Plating	Screw Thread	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Contact Material - Plating	Torque - Screw	Torque - Screw	Pitch	Pitch	Mounting Type	Wire Termination	Features	Number of Levels	Positions Per Level	Current	Voltage	Wire Gauge [Max]	Wire Gauge [Min]	Color	Mating Orientation

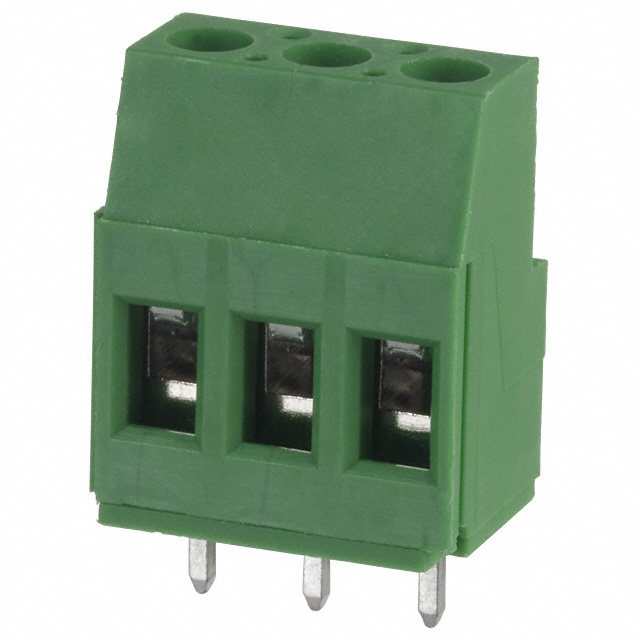

On Shore Technology Inc. ED700/3	Copper	M3	-30 ░C	105 ░C	Polyamide (PA) Nylon	Brass	4.4 Lb-In	0.5 Nm	0.197 in	5 mm	Through Hole	Screw - Rising Cage Clamp	Interlocking (Side)	1	3	20 A	300 VDC	30 AWG	12 AWG	Green	Horizontal with Board

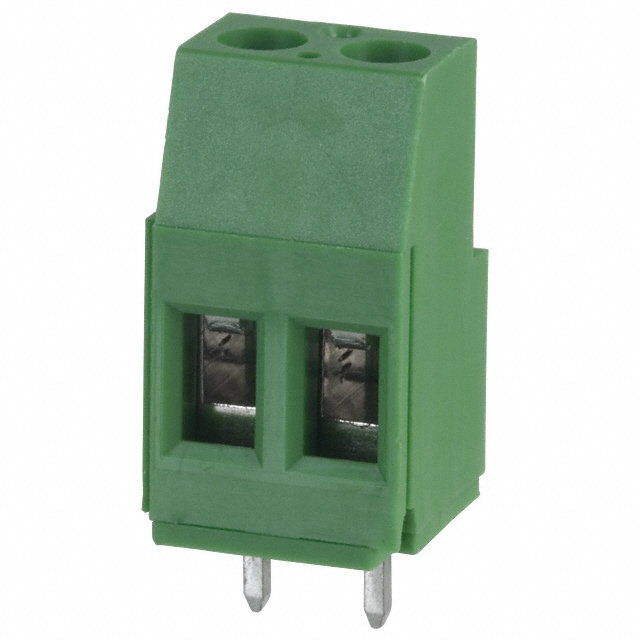

On Shore Technology Inc. ED700/2	Copper	M3	-30 ░C	105 ░C	Polyamide (PA) Nylon	Brass	4.4 Lb-In	0.5 Nm	0.197 in	5 mm	Through Hole	Screw - Rising Cage Clamp	Interlocking (Side)	1	2	20 A	300 VDC	30 AWG	12 AWG	Green	Horizontal with Board
