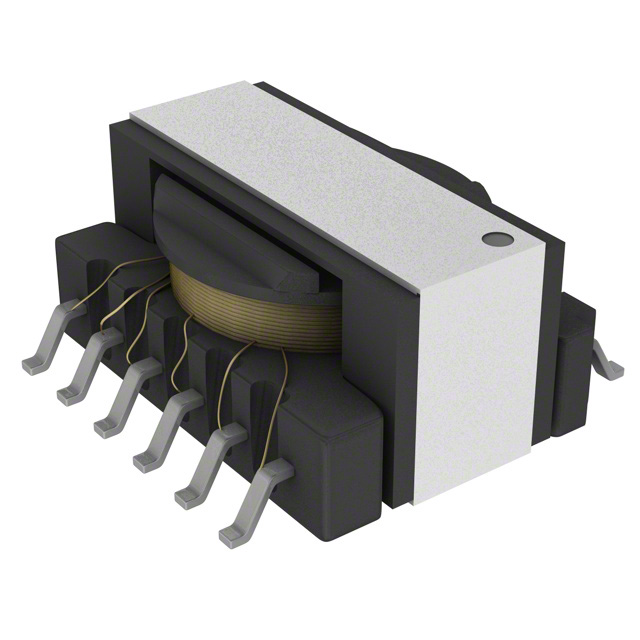

PCA Series
Manufacturer: TDK Corporation
Beta
⌘K
AUDIO TRANSFORMERS / SIGNAL TRANSFORMERS
| Part | Inductance @ Frequency | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Type | Applications | Height - Seated (Max) | Height - Seated (Max) [Max] | Footprint [x] | Footprint [x] | Footprint [y] | Footprint [y] | Mounting Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 4.1 µH 146 µH | 500 Vrms | 85 °C | -40 C | Configurable (For DC/DC) | Capacitor Charger | 7.8 mm | 0.307 in | 16.3 mm | 0.642 in | 0.661 in | 16.8 mm | Surface Mount | 0.472 " | 12 mm | 0.642 in | 16.3 mm |
