ST-DB15 Series

Catalog

DB15 HD MALE BREAKOUT BOARD

Part	Board Thickness	Board Thickness	Material	Number of Positions	Proto Board Type	Pitch	Pitch	Package Accepted	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]

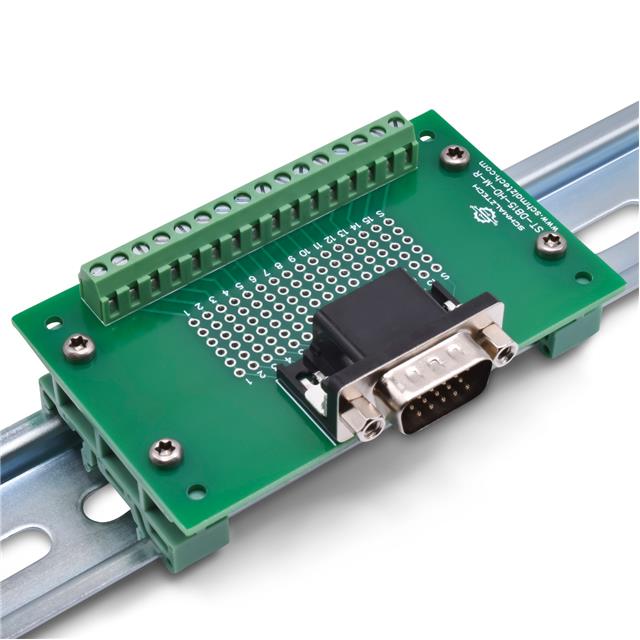

SchmalzTech, LLC ST-DB15-HD-M-R-DIN	0.063 in	1.6 mm	FR4 Epoxy Glass	15	Connector to Terminal Block	0.1 "	2.54 mm	DB15	2 in	83.82 mm	3.3 "	50.8 mm

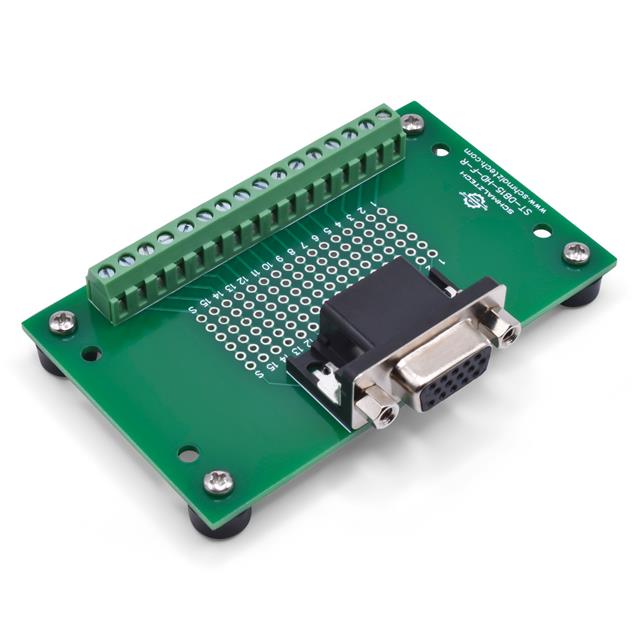

SchmalzTech, LLC ST-DB15-HD-F-R-FT				15	Connector to Terminal Block	0.1 "	2.54 mm	DB15	2 in	83.82 mm	3.3 "	50.8 mm

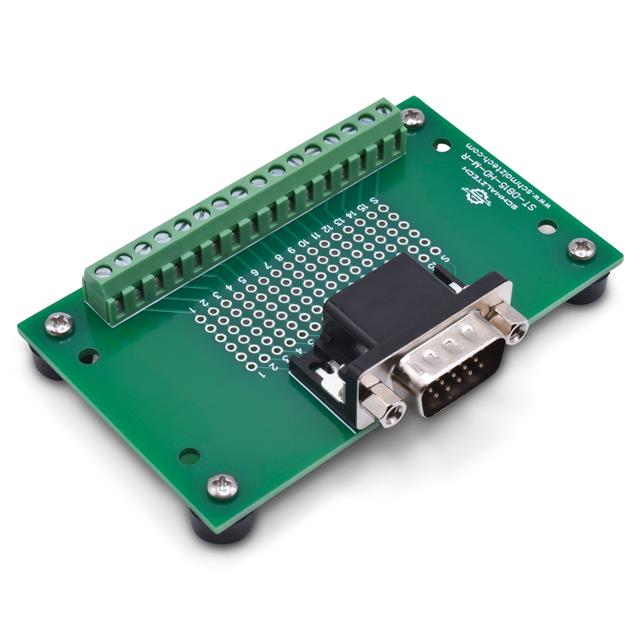

SchmalzTech, LLC ST-DB15-HD-M-R-FT				15	Connector to Terminal Block	0.1 "	2.54 mm	DB15	2 in	83.82 mm	3.3 "	50.8 mm
