IRGPS60 Series
Manufacturer: INFINEON
Beta
⌘K

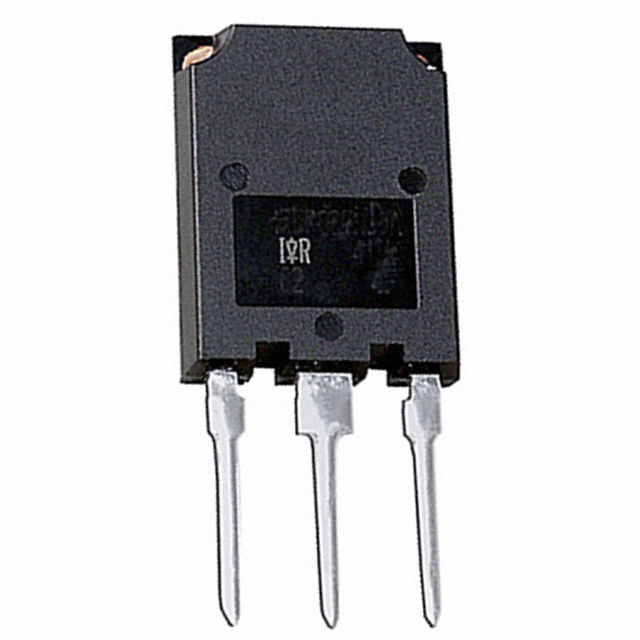

IGBT 1200V 105A 595W SUPER247
| Part | Switching Energy | Test Condition | Gate Charge | Mounting Type | Current - Collector Pulsed (Icm) | Supplier Device Package | Voltage - Collector Emitter Breakdown (Max) [Max] | Reverse Recovery Time (trr) | IGBT Type | Current - Collector (Ic) (Max) [Max] | Package / Case | Vce(on) (Max) @ Vge, Ic [Max] | Power - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 3.21 mJ 4.78 mJ | 4.7 Ohm 15 A 15 V 600 V | 340 nC | Through Hole | 240 A | SUPER-247™ (TO-274AA) | 1200 V | 180 ns | NPT | 105 A | TO-274AA | 2.75 V | 595 W | 150 °C | -55 °C |
