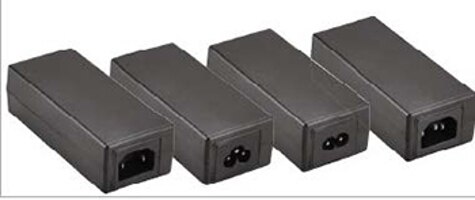

PEAMD72 Series

Medical Desktop Power Supply 12V 72 Watt

Manufacturer: TT Electronics/BI

Catalog

Medical Desktop Power Supply 12V 72 Watt

Catalog

Medical Desktop Power Supply 12V 72 Watt

Part	No Load Power Consumption	Power (Watts)	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output	Polarization	Current - Output (Max) [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Form	Cord Length	Cord Length	Region Utilized	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Output Connector	Output Connector [x]	Output Connector [diameter]	Efficiency	Input Type	Input Connector	Approval Agency	Standard Number
TT Electronics/BI PEAMD72-18-B2	210 mW	72 W	Medical	0 °C	60 °C	48 V	Positive Center	1.5 A	264 VAC	90 VAC	Desktop (Class I)	47 in	1.2 m	International	34.8 mm	1.93 in	1.37 in	4.45 in	113 mm	49 mm	Barrel Plug	10 mm	2.5 mm 5.5 mm	Level VI	Cord (Sold Separately)	IEC 320-C14	CB CE cURus FCC TUV	60601-1
TT Electronics/BI PEAMD72-10-B2	210 mW	45 W	Medical	0 °C	60 °C	5 V	Positive Center	9 A	264 VAC	90 VAC	Desktop (Class I)	47 in	1.2 m	International	34.8 mm	1.93 in	1.37 in	4.45 in	113 mm	49 mm	Barrel Plug	10 mm	2.5 mm 5.5 mm	Level VI	Cord (Sold Separately)	IEC 320-C14	CB CE cURus FCC TUV	60601-1
TT Electronics/BI PEAMD72-14-B2	210 mW	72 W	Medical	0 °C	60 °C	24 V	Positive Center	3 A	264 VAC	90 VAC	Desktop (Class I)	47 in	1.2 m	International	34.8 mm	1.93 in	1.37 in	4.45 in	113 mm	49 mm	Barrel Plug	10 mm	2.5 mm 5.5 mm	Level VI	Cord (Sold Separately)	IEC 320-C14	CB CE cURus FCC TUV	60601-1
TT Electronics/BI PEAMD72-13-B2	210 mW	72 W	Medical	0 °C	60 °C	15 V	Positive Center	4.8 A	264 VAC	90 VAC	Desktop (Class I)	47 in	1.2 m	International	34.8 mm	1.93 in	1.37 in	4.45 in	113 mm	49 mm	Barrel Plug	10 mm	2.5 mm 5.5 mm	Level VI	Cord (Sold Separately)	IEC 320-C14	CB CE cURus FCC TUV	60601-1
TT Electronics/BI PEAMD72-12-B2	210 mW	72 W	Medical	0 °C	60 °C	12 V	Positive Center	6 A	264 VAC	90 VAC	Desktop (Class I)	47 in	1.2 m	International	34.8 mm	1.93 in	1.37 in	4.45 in	113 mm	49 mm	Barrel Plug	10 mm	2.5 mm 5.5 mm	Level VI	Cord (Sold Separately)	IEC 320-C14	CB CE cURus FCC TUV	60601-1
