DLP670RE Series

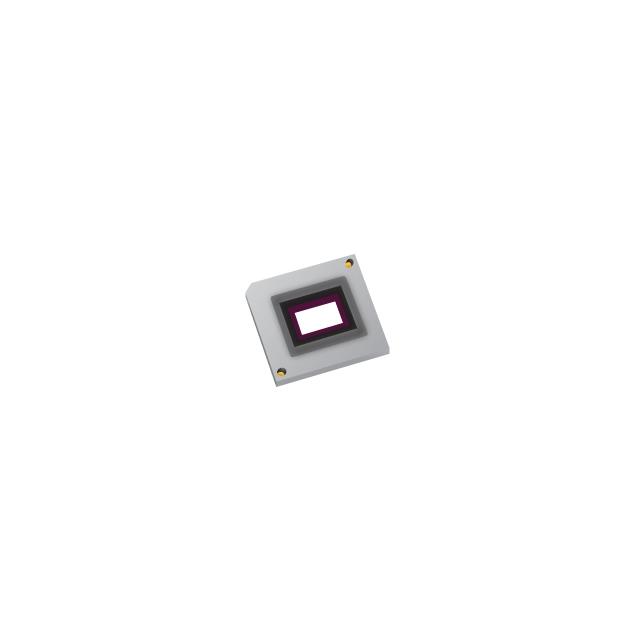

0.67-inch 2716x1600 DLP® digital micromirror device (DMD)
Manufacturer: Texas Instruments
Catalog
0.67-inch 2716x1600 DLP® digital micromirror device (DMD)
Key Features
• High resolution 2716 × 1600 array>4.3 million micromirrors0.67-inch micromirror array diagonal5.4-micron micromirror pitch±17.5° micromirror tilt angle (relative to flat surface)Designed for bottom illuminationIntegrated micromirror driver circuitryDesigned for use with broadband visible light (420 nm–700 nm)Window transmission 97% (single pass, through two window surfaces)Micromirror reflectivity 88%Array diffraction efficiency 84% (@f/2.4)Array fill factor 93%Four 16-bit, low voltage differential signaling (LVDS), double data rate (DDR) input-data busesDriven by dual DLPC900 digital controllersUp to 9523-Hz 1-bit patterns/secondEquivalent to 41.3 gigabits/second pixel data rate in a prestored pattern modeUp to 1190-Hz, 8-bit gray pattern rate (prestored patterns with illumination modulation)Up to 247-Hz, 8-bit pattern rate (external video pattern input)High resolution 2716 × 1600 array>4.3 million micromirrors0.67-inch micromirror array diagonal5.4-micron micromirror pitch±17.5° micromirror tilt angle (relative to flat surface)Designed for bottom illuminationIntegrated micromirror driver circuitryDesigned for use with broadband visible light (420 nm–700 nm)Window transmission 97% (single pass, through two window surfaces)Micromirror reflectivity 88%Array diffraction efficiency 84% (@f/2.4)Array fill factor 93%Four 16-bit, low voltage differential signaling (LVDS), double data rate (DDR) input-data busesDriven by dual DLPC900 digital controllersUp to 9523-Hz 1-bit patterns/secondEquivalent to 41.3 gigabits/second pixel data rate in a prestored pattern modeUp to 1190-Hz, 8-bit gray pattern rate (prestored patterns with illumination modulation)Up to 247-Hz, 8-bit pattern rate (external video pattern input)
Description
AI
Featuring over 4.3 million micromirrors, the DLP670S digital micromirror device (DMD) is a spatial light modulator (SLM) that modulates the amplitude, direction, and phase of incoming light. This DMD coupled with its four 2xLVDS input data buses enables the display of high-resolution patterns at very fast pattern rates. The high resolution and fast pattern rates offered by the DLP670S make it well-suited to support a wide variety of industrial, medical, and advanced imaging applications. Reliable function and operation of the DLP670S is enabled in conjunction with dual DLPC900 digital controllers. This dedicated chipset provides flexible and easy-to-program patterns at the high pattern rates necessary to meet the requirements of a variety of end-equipment solutions.
The high resolution provides a direct benefit to the scanning of larger objects in 3D machine vision applications.
Get started withTI DLP advanced light-controltechnology page to learn how to get started with theDLP670S. The DLP advanced light control resources onTI.comaccelerate time to market, which includeevaluation modules,reference designs,optical modules manufacturers, andDLP design network partners.
Featuring over 4.3 million micromirrors, the DLP670S digital micromirror device (DMD) is a spatial light modulator (SLM) that modulates the amplitude, direction, and phase of incoming light. This DMD coupled with its four 2xLVDS input data buses enables the display of high-resolution patterns at very fast pattern rates. The high resolution and fast pattern rates offered by the DLP670S make it well-suited to support a wide variety of industrial, medical, and advanced imaging applications. Reliable function and operation of the DLP670S is enabled in conjunction with dual DLPC900 digital controllers. This dedicated chipset provides flexible and easy-to-program patterns at the high pattern rates necessary to meet the requirements of a variety of end-equipment solutions.
The high resolution provides a direct benefit to the scanning of larger objects in 3D machine vision applications.
Get started withTI DLP advanced light-controltechnology page to learn how to get started with theDLP670S. The DLP advanced light control resources onTI.comaccelerate time to market, which includeevaluation modules,reference designs,optical modules manufacturers, andDLP design network partners.
