073276 Series
Manufacturer: Molex
Beta
⌘K
BMA PLUG RA PCB THRU HOLE
| Part | Contact Termination | Shield Termination | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Body Finish | Includes | Dielectric Material | Connector Type | Center Contact Material | Connector Style | Frequency - Max [Max] | Mating Cycles | Center Contact Plating | Number of Ports | Housing Color | Impedance | Body Material | Ingress Protection | Cable Group | Cable Group | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | |||||||||||||||||||||||

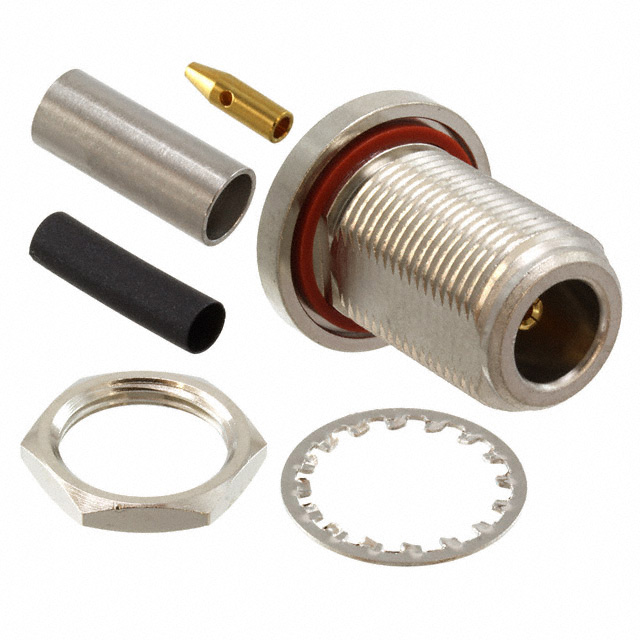

 Molex | Crimp | Crimp | 1000 VDC | -55 °C | 125 °C | Bulkhead - Front Side Nut | Nickel | 1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Lockwasher 1 Nut | Polytetrafluoroethylene (PTFE) | Female Socket Jack | Beryllium Copper | N Type | 11 GHz | 500 | Gold | 1 | Silver | 50 Ohms | Brass | IP68 - Dust Tight Waterproof | |||

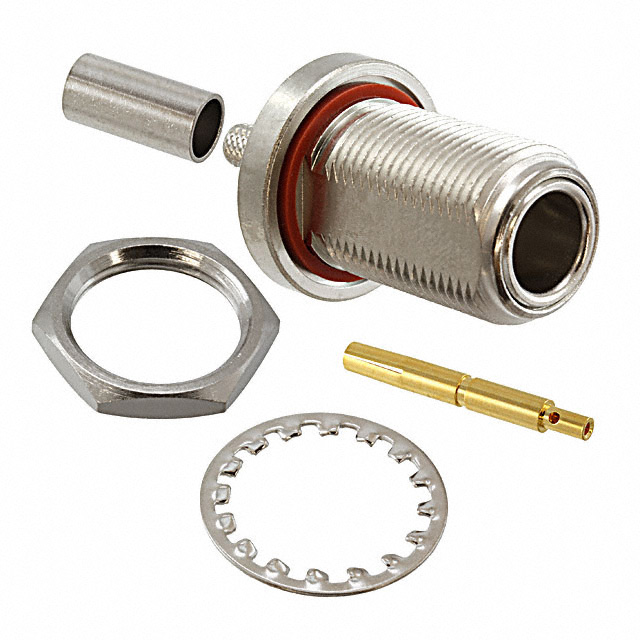

 Molex | Crimp | Crimp | 1000 VDC | -55 °C | 125 °C | Bulkhead - Front Side Nut | Nickel | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | Polytetrafluoroethylene (PTFE) | Female Socket Jack | Phosphor Bronze | N Type | 11 GHz | 500 | Gold | 1 | Silver | 50 Ohms | Brass | 141 | RG-58 | ||
Molex | |||||||||||||||||||||||
Molex | |||||||||||||||||||||||
Molex | |||||||||||||||||||||||
 Molex | Crimp Solder | Crimp | 1000 VDC | -55 °C | 125 °C | Nickel | 1 Connector 1 Contact 1 Ferrule | Male Pin Plug | Brass | N Type | 11 GHz | 500 | Gold | 1 | Silver | 50 Ohms | Brass | RG-58 | Free Hanging (In-Line) |
