395-027 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE SINGLE FML 27POS 0.100
...
| Part | Material - Insulation | Flange Feature | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Contact Type | Gender | Contact Finish | Color | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Number of Positions | Pitch [x] | Pitch [x] | Features | Termination | Mounting Type | Number of Rows | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

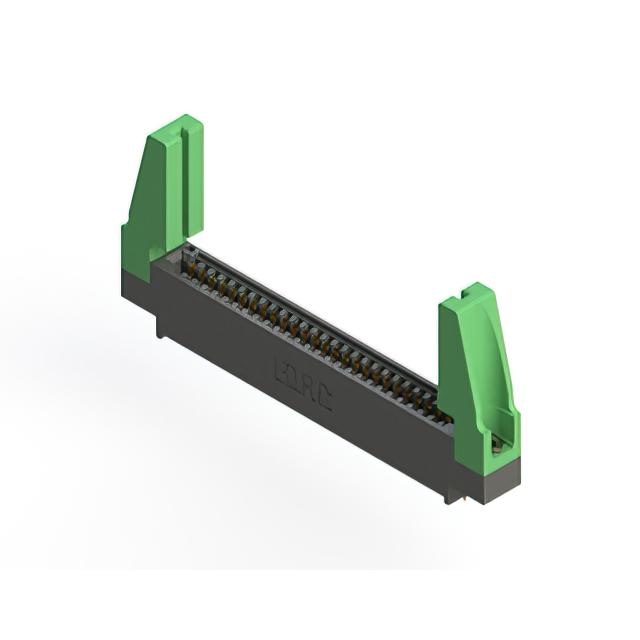

 EDAC Inc. | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 27 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Cantilever | Female | Gold | Black | 10 Áin | 0.25 Ám | 1 | 27 | 2.54 mm | 0.1 in | Card Guides | Wire Wrap | Through Hole | 1 | Copper Alloy | -40 °C | 105 ░C | Non Specified - Single Edge | ||||
 EDAC Inc. | Polyester Thermoplastic | Side Mount Opening Unthreaded | 27 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Cantilever | Female | Gold | Black | 10 Áin | 0.25 Ám | 1 | 27 | 2.54 mm | 0.1 in | Wire Wrap | Through Hole | 1 | Copper Alloy | -40 °C | 105 ░C | Non Specified - Single Edge | 3.25 mm | 0.128 in | |||
 EDAC Inc. | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 27 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Cantilever | Female | Gold | Black | 10 Áin | 0.25 Ám | 1 | 27 | 2.54 mm | 0.1 in | Card Guides | Wire Wrap | Through Hole | 1 | Copper Alloy | -40 °C | 105 ░C | Non Specified - Single Edge | ||||

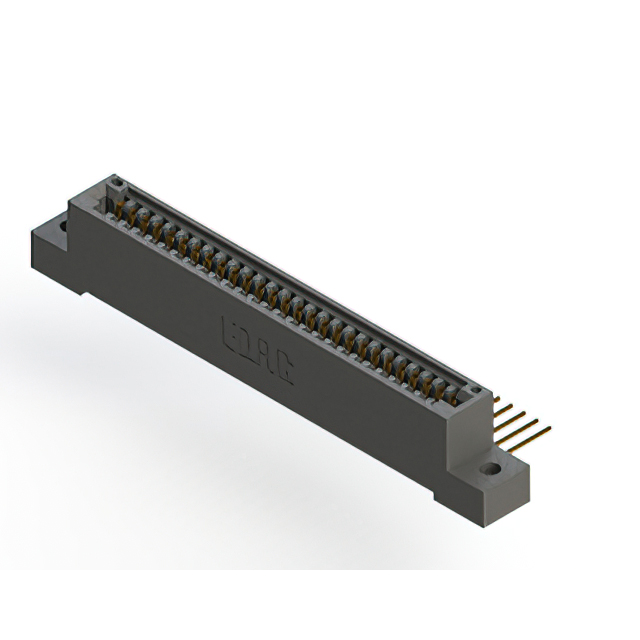

 EDAC Inc. | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 27 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Cantilever | Female | Gold | Black | 10 Áin | 0.25 Ám | 1 | 27 | 2.54 mm | 0.1 in | Solder | Through Hole Right Angle | 1 | Copper Alloy | -40 °C | 105 ░C | Non Specified - Single Edge | |||||
 EDAC Inc. | Polyester Thermoplastic | Flush Mount Top Opening Unthreaded | 27 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Cantilever | Female | Gold | Black | 10 Áin | 0.25 Ám | 1 | 27 | 2.54 mm | 0.1 in | Solder | Through Hole Right Angle | 1 | Copper Alloy | -40 °C | 105 ░C | Non Specified - Single Edge | 3.25 mm | 0.128 " | |||
 EDAC Inc. | Polyester Thermoplastic | Floating Bobbin Flush Mount | 27 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Cantilever | Female | Gold | Black | 10 Áin | 0.25 Ám | 1 | 27 | 2.54 mm | 0.1 in | Solder | Through Hole | 1 | Copper Alloy | -40 °C | 105 ░C | Non Specified - Single Edge | 2.95 mm | 0.116 in | |||
 EDAC Inc. | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 27 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Cantilever | Female | Gold | Black | 10 Áin | 0.25 Ám | 1 | 27 | 2.54 mm | 0.1 in | Card Guides | Solder | Through Hole | 1 | Copper Alloy | -40 °C | 105 ░C | Non Specified - Single Edge | ||||
 EDAC Inc. | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | 27 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Cantilever | Female | Gold | Black | 10 Áin | 0.25 Ám | 1 | 27 | 2.54 mm | 0.1 in | Solder | Through Hole | 1 | Copper Alloy | -40 °C | 105 ░C | Non Specified - Single Edge | |||||
 EDAC Inc. | Polyester Thermoplastic | 27 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Cantilever | Female | Gold | Black | 10 Áin | 0.25 Ám | 1 | 27 | 2.54 mm | 0.1 in | Solder | Through Hole Right Angle | 1 | Copper Alloy | -40 °C | 105 ░C | Non Specified - Single Edge | ||||||
 EDAC Inc. | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 27 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Cantilever | Female | Gold | Black | 10 Áin | 0.25 Ám | 1 | 27 | 2.54 mm | 0.1 in | Card Guides | Solder | Through Hole | 1 | Copper Alloy | -40 °C | 105 ░C | Non Specified - Single Edge |
