AA65U Series
Manufacturer: Phihong USA
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

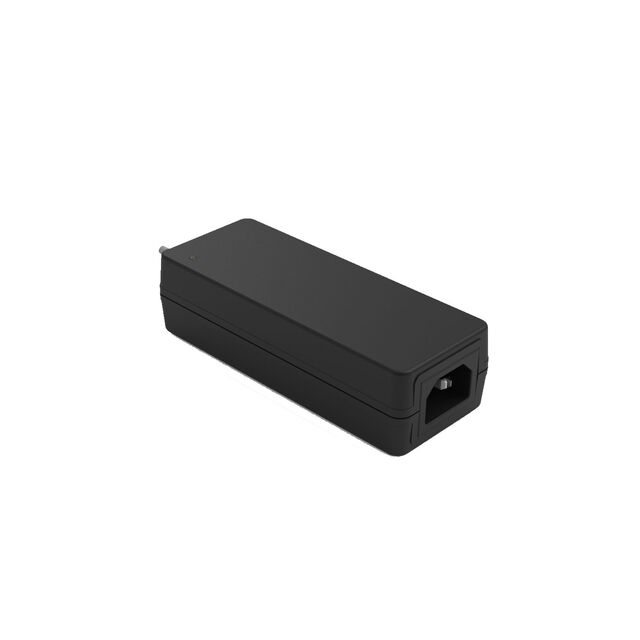

DESKTOP AC ADAPTERS 64.8W 48V 1.35A C14 INPUT 2.1X5.5 OUTPUT PLUG
| Part | Applications | Operating Temperature (Min) | Operating Temperature (Max) | Form | Current - Output (Max) | Voltage - Output | Region Utilized | Efficiency | Output Connector O.D. | Output Connector | Output Connector Length | Output Connector I.D. | Power (Watts) | Standard Number | Input Connector | Approval Agency | Polarization | Cord Length | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | Size / Dimension Length | Size / Dimension Height | Size / Dimension Width | Input Type | No Load Power Consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phihong USA | ITE (Commercial) | -10 °C | 40 °C | Desktop (Class I) | 1.35 A | 48 V | International | CoC Tier 2 Level VI | 5.5 mm | Barrel Plug | 9.5 mm | 2.1 mm | 65 W | 62368-1 | IEC 320-C14 | CE cUL cULus UKCA | Positive Center | 59 in | 90 V | 264 V | 4.92 in | 1.32 in | 1.97 in | Cord (Sold Separately) | 114.5 mW |
