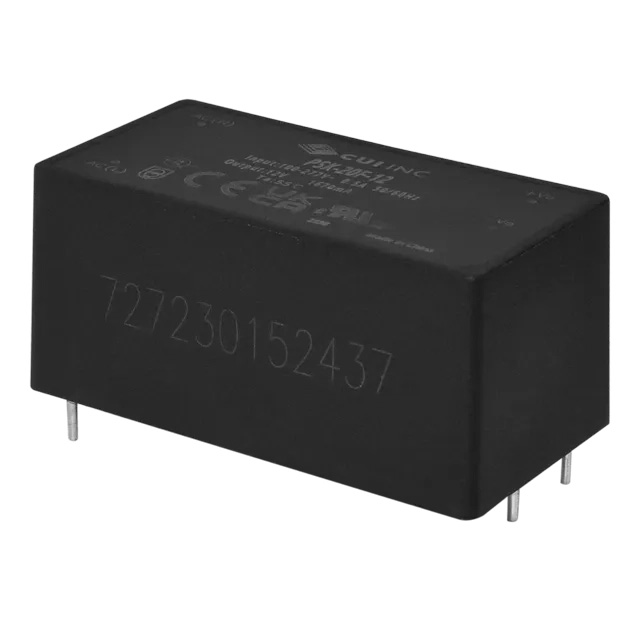

PSK-20F Series
Manufacturer: CUI Inc.
Beta
⌘K
SWITCHING POWER SUPPLIES 24 VDC, 0.83 A, 20 W
| Part | Power (Watts) | Voltage - Input [Min] | Voltage - Input [Max] | Number of Outputs | Applications | Approval Agency | Standard Number | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Current - Output (Max) [Max] | Load Regulation | Line Regulation | Type | Package / Case | Features | Efficiency | Voltage - Output 1 | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 20 W | 85 VAC 100 V | 305 VAC 430 VDC | 1 | Household Appliances ITE (Commercial) | CE cURus UKCA | 60335-1 62368-1 | 1.07 in | 0.94 " | 2.06 " | 27.2 mm | 52.4 mm | 24 mm | 830 mA | ±1% | 0.5 % | Enclosed | 5-DIP Module 4 Leads | Adjustable Output | 87 % | 24 V | Through Hole | -40 °C | 85 °C |
CUI Inc. | 13 W | 85 VAC 100 V | 305 VAC 430 VDC | 1 | Household Appliances ITE (Commercial) | CE cURus UKCA | 60335-1 62368-1 | 1.07 in | 0.94 " | 2.06 " | 27.2 mm | 52.4 mm | 24 mm | 4 A | ±1% | 0.5 % | Enclosed | 5-DIP Module 4 Leads | Adjustable Output | 83 % | 3.3 V | Through Hole | -40 °C | 85 °C |
