IDC Series
Manufacturer: Phoenix Contact
Beta
⌘K

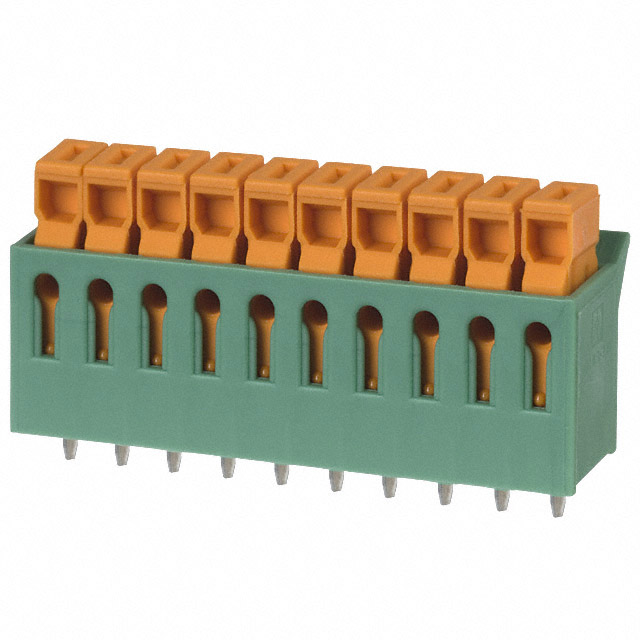

FIXED TERMINAL BLOCKS 10P 3.81MM 90 DEG
| Part | Housing Material | Wire Termination | Mounting Type | Mating Orientation | Pitch | Pitch | Wire Gauge [Min] | Wire Gauge [Max] | Positions Per Level | Color | Voltage | Current | Number of Levels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | Polyamide (PA) Nylon | Screwless - IDC | Through Hole | Horizontal with Board | 3.81 mm | 0.15 in | 22 AWG | 28 AWG | 10 | Green | 300 VDC | 5 A | 1 |
