ECQ-E2683 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 0.068UF 5% 250VDC RAD

Part	Applications	Package / Case	Voltage Rating - DC	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Lead Spacing	Lead Spacing	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components ECQ-E2683JFW	General Purpose	Radial	250 V	Through Hole	0.177 "	4.5 mm	10.3 mm	0.406 in	0.295 in	7.5 mm	PC Pins	-40 C	105 ░C	Polyester Metallized	0.068 µF	0.492 in	12.5 mm	5 %
Panasonic Electronic Components ECQ-E2683KF9	General Purpose	Radial	250 V	Through Hole	0.177 "	4.5 mm	10.3 mm	0.406 in	0.197 "	5 mm	PC Pins	-40 C	105 ░C	Polyester Metallized	0.068 µF	0.492 in	12.5 mm	10 %
Panasonic Electronic Components ECQ-E2683KS	General Purpose	Radial	250 V	Through Hole	0.197 "	5 mm	12.5 mm	0.492 "	0.394 in	10 mm	PC Pins	-40 C	85 °C	Polyester Metallized	0.068 µF	9 mm		10 %	0.354 in
Panasonic Electronic Components ECQ-E2683KF	General Purpose	Radial	250 V	Through Hole	0.177 "	4.5 mm	10.3 mm	0.406 in	0.295 in	7.5 mm	PC Pins	-40 C	105 ░C	Polyester Metallized	0.068 µF	8.5 mm		10 %	0.335 "
Panasonic Electronic Components ECQ-E2683JFB	General Purpose	Radial	250 V	Through Hole	0.177 "	4.5 mm	10.3 mm	0.406 in	0.295 in	7.5 mm	PC Pins	-40 C	105 ░C	Polyester Metallized	0.068 µF	0.492 in	12.5 mm	5 %

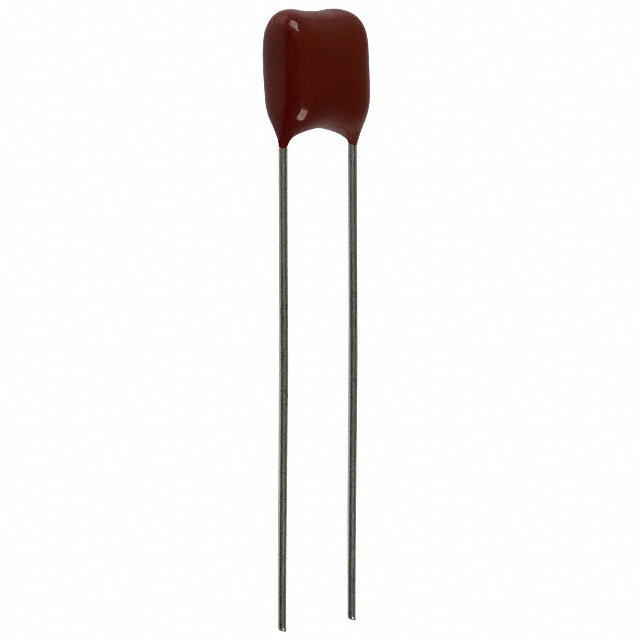

Panasonic Electronic Components ECQ-E2683KB	General Purpose	Radial	250 V	Through Hole	0.201 "	5.1 mm	7.9 mm	0.311 in	0.197 "	5 mm	PC Pins	-40 C	105 ░C	Polyester Metallized	0.068 µF	9 mm		10 %	0.354 in
Panasonic Electronic Components ECQ-E2683KFB	General Purpose	Radial	250 V	Through Hole	0.177 "	4.5 mm	10.3 mm	0.406 in	0.295 in	7.5 mm	PC Pins	-40 C	105 ░C	Polyester Metallized	0.068 µF	0.492 in	12.5 mm	10 %
Panasonic Electronic Components ECQ-E2683JF3	General Purpose	Radial	250 V	Through Hole	0.177 "	4.5 mm	10.3 mm	0.406 in	0.197 "	5 mm	PC Pins	-40 C	105 ░C	Polyester Metallized	0.068 µF	0.492 in	12.5 mm	5 %
Panasonic Electronic Components ECQ-E2683RKF	General Purpose	Radial	250 V	Through Hole	0.177 "	4.5 mm	10.3 mm	0.406 in	0.295 in	7.5 mm	PC Pins	-40 C	105 ░C	Polyester Metallized	0.068 µF	7.5 mm		10 %		0.295 in
