pv4 Series

Manufacturer: E-Switch

Catalog

SWITCH: VANDAL RESISTANT; POS: 2; SPDT; 2A/48VDC; ON-(ON); BLUE

Part	Electrical Life	Color - Actuator/Cap	Features	Type	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Ingress Protection	Current Rating (Amps)	Mounting Type	Illumination Type, Color	Actuator Marking	Termination Style	Illumination Voltage (Nominal)	Actuator Type	Mechanical Life
E-Switch PV4F2B0SS-341-M01	50000 Cycles	Silver	Fixed LED Ring	Anti-Vandal Illuminated	19 mm	24 V	SPDT	55 °C	-20 ░C	On-Mom	IP65 - Dust Tight Water Resistant	2 A	Panel Mount Front	Blue LED	Power Symbol	Solder Quick Connect - 0.110" (2.8mm)	2.8 VDC	Button Flush Round
E-Switch PV4FWB0SS-341		Silver		Anti-Vandal Illuminated	19 mm	24 V	SPDT	55 °C	-20 ░C	On-Mom	IP65 - Dust Tight Water Resistant	2 A	Panel Mount Front	Blue LED		Wire Leads	2.8 VDC	Button Flush Round
E-Switch PV4F230SS-341	50000 Cycles	Silver		Anti-Vandal Illuminated	19 mm	24 V	SPDT	55 °C	-20 ░C	On-On	IP65 - Dust Tight Water Resistant	2 A	Panel Mount Front	Blue LED	No Marking	Solder Quick Connect - 0.110" (2.8mm)	2.8 VDC	Button Flush Round	1000000 Cycles
E-Switch PV4F2B0SS-333-M26		Silver		Anti-Vandal Illuminated	19 mm	24 V	SPDT	55 °C	-20 ░C	On-Mom	IP65 - Dust Tight Water Resistant	2 A	Panel Mount Front	Green LED		Solder Quick Connect - 0.110" (2.8mm)	6 VDC	Button Flush Round
E-Switch PV4F2G0SS-344-M39
E-Switch PV4F2Y0SS-304-M26		Silver		Anti-Vandal Illuminated	19 mm	24 V	DPST-NO/NC	55 °C	-20 ░C	Off-Mom On-Mom	IP65 - Dust Tight Water Resistant	2 A	Panel Mount Front	LED White		Solder Quick Connect - 0.110" (2.8mm)	12 VDC	Button Flush Round
E-Switch PV4F23011-3R4	50000 Cycles	Black		Anti-Vandal Illuminated	19 mm	24 V	SPDT	55 °C	-20 ░C	On-On	IP65 - Dust Tight Water Resistant	2 A	Panel Mount Front	Blue Green LED Red	No Marking	Solder Quick Connect - 0.110" (2.8mm)	12 VDC	Button Flush Round	1000000 Cycles

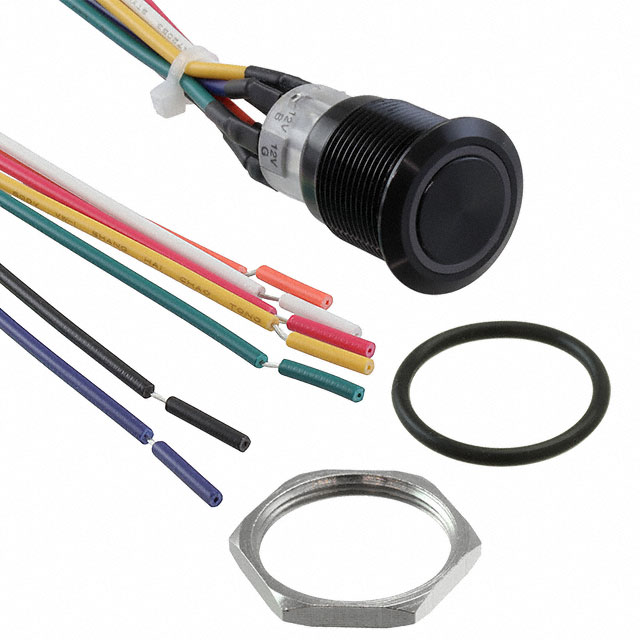

E-Switch PV4FWB011-3R4	50000 Cycles	Black		Anti-Vandal Illuminated	19 mm	24 V	SPDT	55 °C	-20 ░C	On-Mom	IP65 - Dust Tight Water Resistant	2 A	Panel Mount Front	Blue Green LED Red	No Marking	Wire Leads	12 VDC	Button Flush Round	1000000 Cycles
E-Switch PV4F23011-335		Black		Anti-Vandal Illuminated	19 mm	24 V	SPDT	55 °C	-20 ░C	On-On	IP65 - Dust Tight Water Resistant	2 A	Panel Mount Front	Green LED	No Marking	Solder Quick Connect - 0.110" (2.8mm)	24 V	Button Flush Round
E-Switch PV4F2B0SS-331-M01		Silver		Anti-Vandal Illuminated	19 mm	24 V	SPDT	55 °C	-20 ░C	On-Mom	IP65 - Dust Tight Water Resistant	2 A	Panel Mount Front	Green LED		Solder Quick Connect - 0.110" (2.8mm)	2.8 VDC	Button Flush Round
