DMCC Series

Catalog

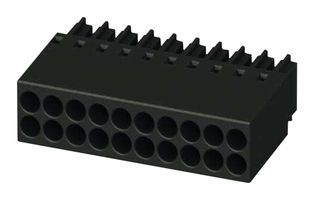

TERMINAL BLOCK, PLUGGABLE, 30WAYS, 18AWG ROHS COMPLIANT: YES

Part	Wire Strip Length [Max]	Wire Strip Length [Min]	Material Flammability Rating	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Housing Material	Insulation Height	Insulation Height	Number of Levels	Color	Termination Style	Pitch	Pitch	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Operating Temperature	Mounting Type	Voltage - IEC	Positions Per Level	Current - IEC	Number of Positions	Plug Wire Entry	Type
Phoenix Contact 1027617	4.5 mm	4.1 mm	UL94 V-0	0.75 mm˛	0.14 mm˛	Polyamide (PA) Nylon	0.256 in	6.5 mm	2	Black	Crimp	0.1 "	2.54 mm	26 AWG	18 AWG	0.14 mm²	0.75 mm²	-55 °C	Free Hanging (In-Line)	160 V	15	6 A	30	180 °	Plug Housing for Female Sockets
