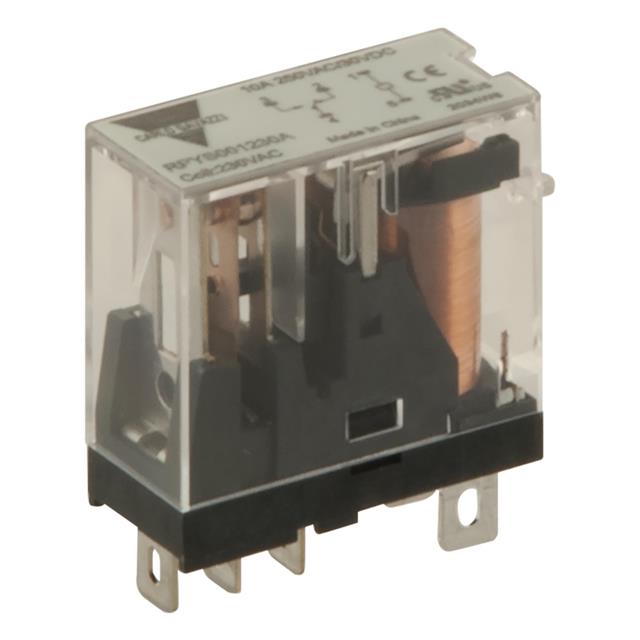

RPYS001 Series
Manufacturer: Carlo Gavazzi Inc.
Beta
⌘K
RELAY GEN PURPOSE SPDT 10A 24V
| Part | Relay Type | Contact Material | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Coil Current | Contact Rating (Current) | Switching Voltage [Max] | Coil Type | Approval Agency | Coil Voltage | Termination Style | Load - Max Switching | Mounting Type | Must Release Voltage | Release Time | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carlo Gavazzi Inc. | General Purpose | Silver Alloy | 18 VDC | 55 °C | -40 C | SPDT (1 Form C) | 21.8 mA | 10 A | 30 VDC 250 VAC | Non Latching | CE UL | 24 VDC | 5 Pin Plug In | 300 W 2500 VA | Socketable | 2.4 VDC | 10 ms | 20 ms |
