470097CY Series

Catalog

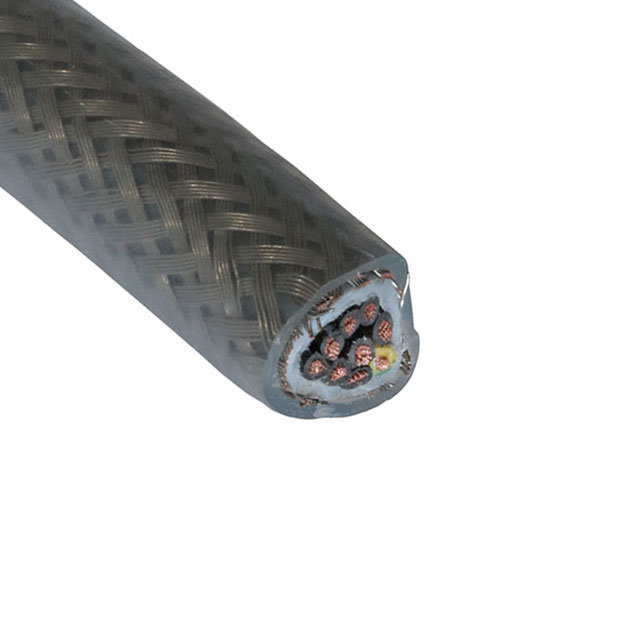

CABLE 9COND 19AWG CLEAR SHLD 1M

Part	Cable Type	Length	Length	Usage	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [diameter]	Jacket (Insulation) Material	Jacket Color	Shield Coverage	Conductor Insulation	Conductor Material	Voltage	Number of Conductors	Shield Material	Shield Type	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
ALPHA WIRE 470097CY CL432	Multi-Conductor	1 m 10 m 20 m	3.28 ft 32.81 ft 65.62 ft	Industrial	98.43 ft	30 m	0.479 "	12.17 mm	30	0.007 in	Poly-Vinyl Chloride (PVC)	Clear	80 %	Poly-Vinyl Chloride (PVC)	Copper Bare	300 VDC	9	Copper Tinned	Braid	19 AWG	80 °C	-40 C	Chemical Resistant Oil Resistant UV Resistant	0.0445 "	1.13 mm
ALPHA WIRE 470097CY CL033	Multi-Conductor			Industrial	328.1 ft	100 m	0.479 "	12.17 mm	30	0.007 in	Poly-Vinyl Chloride (PVC)	Clear	80 %	Poly-Vinyl Chloride (PVC)	Copper Bare	300 VDC	9	Copper Tinned	Braid	19 AWG	80 °C	-40 C	Chemical Resistant Oil Resistant UV Resistant	0.0445 "	1.13 mm
ALPHA WIRE 470097CY GE432	Multi-Conductor	10 m 20 m	32.81 ft 65.62 ft	Industrial	98.43 ft	30 m	0.479 "	12.17 mm	30	0.007 in	Poly-Vinyl Chloride (PVC)	Gray	80 %	Poly-Vinyl Chloride (PVC)	Copper Bare	300 VDC	9	Copper Tinned	Braid	19 AWG	80 °C	-40 C	Chemical Resistant Oil Resistant UV Resistant	0.0445 "	1.13 mm
ALPHA WIRE 470097CY CL321	Multi-Conductor	50 m	164 ft	Industrial			0.479 "	12.17 mm	30	0.007 in	Poly-Vinyl Chloride (PVC)	Clear	80 %	Poly-Vinyl Chloride (PVC)	Copper Bare	300 VDC	9	Copper Tinned	Braid	19 AWG	80 °C	-40 C	Chemical Resistant Oil Resistant UV Resistant	0.0445 "	1.13 mm
