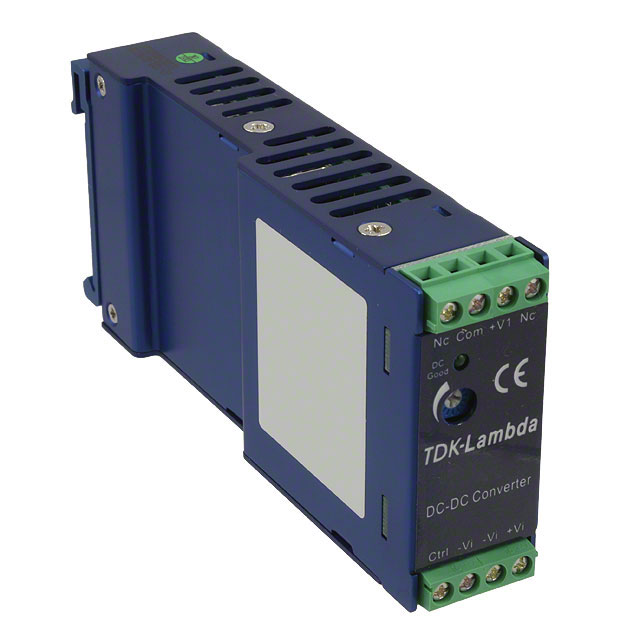

DPX60 Series
Manufacturer: TDK Corporation
Beta
⌘K
ISOLATED DIN RAIL MOUNT DC/DC CONVERTER, 1.6KV ISOLATION, ITE, 2:1, 60 W, 1 OUTPUT, 12 V, 5 A
| Part | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | DC Voltage - Input (Max) [Max] | Number of Outputs | Input Type | Approval Agency | DC Voltage - Input (Min) [Min] | Power (Watts) | Efficiency | Current - Output (Max) | Voltage - Output 1 | Applications | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 125 mm | 2.27 " | 0.96 in | 57.6 mm | 4.92 in | 24.5 mm | 85 °C | -40 C | 75 V | 1 | DC | CE | 36 V | 60 W | 85 % | 5 A | 12 V | ITE (Commercial) | |
TDK Corporation | 125 mm | 2.27 " | 0.96 in | 57.6 mm | 4.92 in | 24.5 mm | 85 °C | -40 C | 36 V | 1 | DC | CE | 18 V | 60 W | 85 % | 5 V | ITE (Commercial) | 12 A | |
TDK Corporation | 125 mm | 2.27 " | 0.96 in | 57.6 mm | 4.92 in | 24.5 mm | 85 °C | -40 C | 75 V | 1 | DC | CE | 36 V | 60 W | 85 % | 15 V | ITE (Commercial) | 4 A |
