0990-4 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

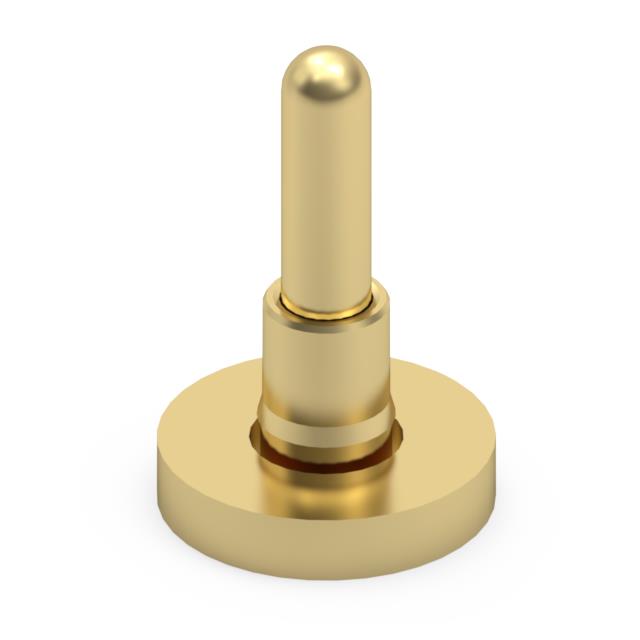

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish | Recommended Working Height | Recommended Working Height | Contact Type | Mating Cycles | Current Rating (Amps) | Contact Material | Operating Force - Initial | Mounting Type | Operating Force - Mid Compression | Maximum Working Height [Max] | Maximum Working Height | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Minimum Working Height [z] | Minimum Working Height [z] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.042 in | 1.07 mm | Gold | 5.29 mm | 0.208 in | Sleeve & Plunger (Pogo Pins) | 1000000 | 5.2 A | Brass Alloy | 10 gf | Surface Mount | 60 gf | 0.236 in | 6 mm | 0.159 in | 4.04 mm | 0.181 in | 4.6 mm | 20 µin | 0.51 µm |
