4361-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

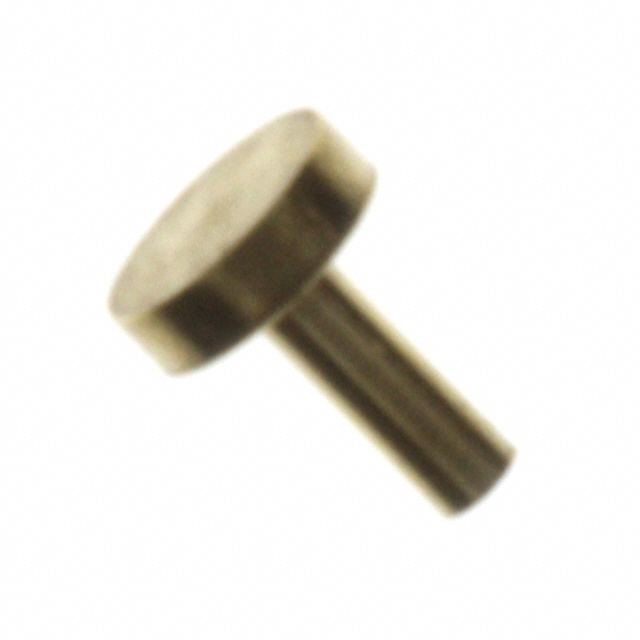

CONN PC PIN CIRC .018DIA GOLD
| Part | Terminal Style | Contact Finish | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Mounting Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Terminal Type | Insulation | Termination | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Length - Overall | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Nail Head Single End | Gold | 1.32 mm | 0.052 in | 0.018 in | 0.46 mm | Through Hole | 0.56 mm | 0.022 in | 1.4 mm | 0.055 " | PC Pin | Non-Insulated | Solder | Brass Alloy | 0.25 Ám | 10 Áin | 0.07 in | 1.78 mm |
