RY Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC 1KV REG 5VIN 15VOUT

...

Part	Package / Case	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 1	Voltage - Input (Max) [Max]	Applications	Voltage - Output 2	Current - Output (Max) [Max]	Current - Output (Max) [Min]	Mounting Type	Voltage - Isolation	Type	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)

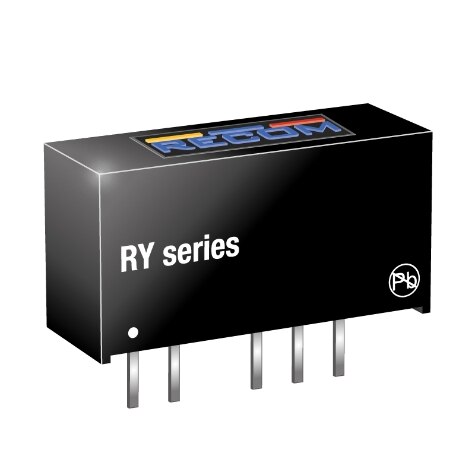

Recom Power RY-0515S/P	7-SIP Module 5 Leads	4.75 V	70 °C	-40 C	SCP	68 %	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	15 V	5.25 V	ITE (Commercial)	-15 V	33 mA	33 mA	Through Hole	1000 V	Isolated Module	2
Recom Power RY-0509D/P	7-SIP Module 5 Leads	4.75 V	70 °C	-40 C	SCP	60 %	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	9 V	5.25 V	ITE (Commercial)	-9 V			Through Hole	1000 V	Isolated Module	2	55 mA	55 mA
Recom Power RY-1509S	7-SIP Module 5 Leads	14.25 V	70 °C	-40 C	SCP	62 %	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	9 V	15.75 V	ITE (Commercial)		111 mA		Through Hole	1000 V	Isolated Module	1
Recom Power RY-2424D	7-SIP Module 5 Leads	21.6 V	70 °C	-40 C	SCP	70 %	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	24 V	26.4 V	ITE (Commercial)	-24 V			Through Hole	1000 V	Isolated Module	2	21 mA
Recom Power RY-0509S	7-SIP Module 5 Leads	4.75 V	70 °C	-40 C	SCP	62 %	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	9 V	5.25 V	ITE (Commercial)		111 mA		Through Hole	1000 V	Isolated Module	1
Recom Power RY-0915D	7-SIP Module 5 Leads	8.55 V	70 °C	-40 C	SCP	68 %	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	15 V	9.45 V	ITE (Commercial)	-15 V	33 mA	33 mA	Through Hole	1000 V	Isolated Module	2
Recom Power RY-1509S/P	7-SIP Module 5 Leads	14.25 V	70 °C	-40 C	SCP	62 %	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	9 V	15.75 V	ITE (Commercial)		111 mA		Through Hole	1000 V	Isolated Module	1
Recom Power RY-2405D	7-SIP Module 5 Leads	21.6 V	70 °C	-40 C	SCP	58 %	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	5 V	26.4 V	ITE (Commercial)	-5 V			Through Hole	1000 V	Isolated Module	2		100 mA	100 mA
Recom Power RY-1212D/P	7-SIP Module 5 Leads	11.4 V	70 °C	-40 C	SCP	68 %	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	12 V	12.6 V	ITE (Commercial)	-12 V			Through Hole	1000 V	Isolated Module	2	42 mA
Recom Power RY-1224S	7-SIP Module 5 Leads	11.4 V	70 °C	-40 C	SCP	68 %	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	24 V	12.6 V	ITE (Commercial)		42 mA		Through Hole	1000 V	Isolated Module	1
