8209 Series

Catalog

D SUB CONNECTOR, TIN & DIMPLE, D TIN AND DIMPLE, DE, PLUG, 9, METAL, IDC / IDT ROHS COMPLIANT: YES

Part	Color	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Material Flammability Rating	Features	Number of Positions	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Mounting Type	Contact Type	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Connector Style	Termination	Contact Finish	Flange Feature
3M Electronic Specialty 8209-8009	Gray	Copper Alloy	-55 C	105 ░C	Glass Filled Polybutylene Terephthalate (PBT) Polyester	UL94 V-0	Feed Through Grounding Indents	9	Plug Male Pins	1	DE E	Panel Mount	Signal	Housing/Shell (Unthreaded)	30 Áin	0.76 Ám	2	D-Sub	IDC Ribbon Cable	Gold
3M Electronic Specialty 8209-6003	Gray	Copper Alloy	-55 C	105 ░C	Glass Filled Polybutylene Terephthalate (PBT) Polyester	UL94 V-0	Feed Through Grounding Indents	9	Plug Male Pins	1	DE E	Panel Mount	Signal	Housing/Shell	30 Áin	0.76 Ám	2	D-Sub	IDC Ribbon Cable	Gold	4-40
3M Electronic Specialty 8209-7009	Gray	Copper Alloy	-55 C	105 ░C	Glass Filled Polybutylene Terephthalate (PBT) Polyester	UL94 V-0	Grounding Indents	9	Plug Male Pins	1	DE E	Panel Mount	Signal	Housing/Shell (Unthreaded)	30 Áin	0.76 Ám	2	D-Sub	IDC Ribbon Cable	Gold

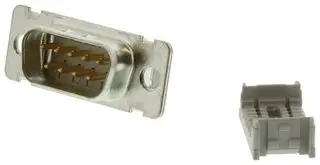

3M Electronic Specialty 8209-6000	Gray	Copper Alloy	-55 C	105 ░C	Glass Filled Polybutylene Terephthalate (PBT) Polyester	UL94 V-0	Feed Through Grounding Indents	9	Plug Male Pins	1	DE E	Panel Mount	Signal	Housing/Shell (Unthreaded)	30 Áin	0.76 Ám	2	D-Sub	IDC Ribbon Cable	Gold
3M Electronic Specialty 8209-6004	Gray	Copper Alloy	-55 C	105 ░C	Glass Filled Polybutylene Terephthalate (PBT) Polyester	UL94 V-0	Feed Through Grounding Indents	9	Plug Male Pins	1	DE E	Panel Mount	Signal	Housing/Shell (M3)	30 Áin	0.76 Ám	2	D-Sub	IDC Ribbon Cable	Gold
3M Electronic Specialty 8209-6009	Gray	Copper Alloy	-55 C	105 ░C	Glass Filled Polybutylene Terephthalate (PBT) Polyester	UL94 V-0	Feed Through Grounding Indents	9	Plug Male Pins	1	DE E	Panel Mount	Signal	Housing/Shell (Unthreaded)	30 Áin	0.76 Ám	2	D-Sub	IDC Ribbon Cable	Gold
