RXG13 Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K

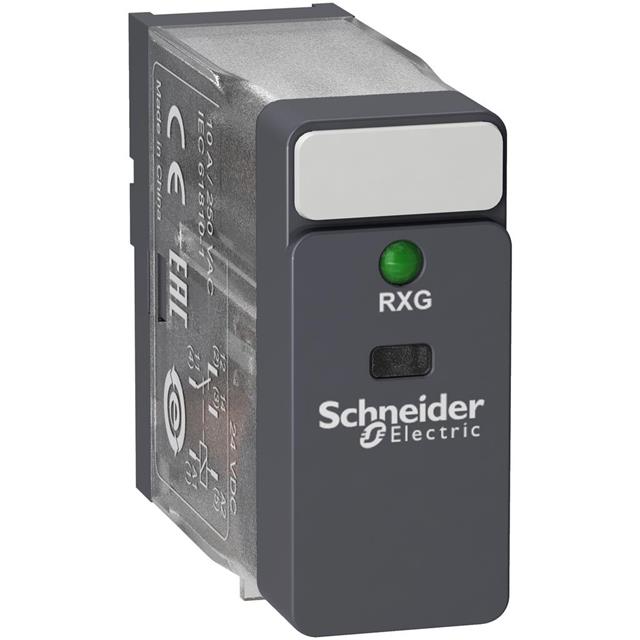

POWER RELAY, SPDT, 12 VDC, 10 A, ZELIO RXG SERIES, SOCKET
| Part | Features | Contact Form | Release Time | Switching Voltage [Max] | Load - Max Switching | Must Release Voltage | Relay Type | Contact Rating (Current) | Contact Material | Coil Voltage | Coil Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Operate Time | Approval Agency | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | Lighted Indicator | SPDT (1 Form C) | 20 ms | 30 VDC 250 VAC | 300 W 2500 VA | 1.2 VDC | General Purpose | 10 A | Silver Tin Oxide Indium Oxide (AgSnOInO) | 12 VDC | Non Latching | Plug In | 70 °C | -40 C | Socketable | 20 ms | CE CSA DNV-GL EAC UL | |
SCHNEIDER ELECTRIC | Lighted Indicator | SPDT (1 Form C) | 20 ms | 30 VDC 250 VAC | 300 W 2500 VA | 69 VAC | General Purpose | 10 A | Silver Tin Oxide Indium Oxide (AgSnOInO) | 230 VAC | Non Latching | Plug In | 70 °C | -40 C | Socketable | 20 ms | CE CSA DNV-GL EAC UL | 184 VAC |
 SCHNEIDER ELECTRIC | Lighted Indicator | SPDT (1 Form C) | 20 ms | 30 VDC 250 VAC | 300 W 2500 VA | 2.4 VDC | General Purpose | 10 A | Silver Tin Oxide Indium Oxide (AgSnOInO) | 24 VDC | Non Latching | Plug In | 70 °C | -40 C | Socketable | 20 ms | CE CSA DNV-GL EAC UL | |
SCHNEIDER ELECTRIC | Lighted Indicator | SPDT (1 Form C) | 20 ms | 30 VDC 250 VAC | 300 W 2500 VA | 36 VAC | General Purpose | 10 A | Silver Tin Oxide Indium Oxide (AgSnOInO) | 120 VAC | Non Latching | Plug In | 70 °C | -40 C | Socketable | 20 ms | CE CSA DNV-GL EAC UL |
