EN2C2F Series

Catalog

CIRCULAR CONNECTOR, EN2 SERIES, 2 CONTACTS, THERMOPLASTIC BODY

Part	Voltage Rating	Termination	Shielding	Features	Contact Finish - Mating	Applications	Contact Material	Connector Type	Primary Material	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Insert Material	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Material Flammability Rating	Color	Fastening Type	Orientation	Mounting Type	Number of Positions	Backshell Material, Plating

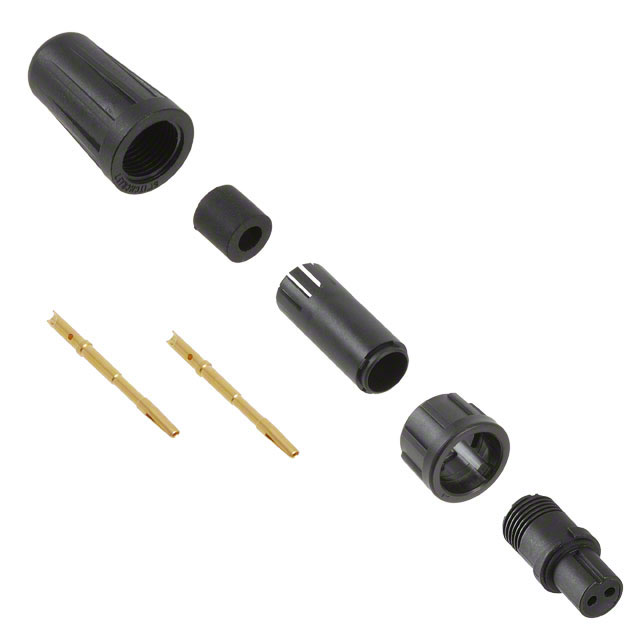

SWITCHCRAFT/CONXALL EN2C2F20G1	250 VAC	Crimp Solder Cup	Unshielded	Backshell Coupling Nut	Gold	Communication Systems Industrial Marine Medical	Copper Alloy	Plug Female Sockets	Plastic	3.5 A	85 °C	-40 C	IP66 IP67 IP68	Elastomer	2.54 mm	0.1 "	3.56 mm	0.14 in	UL94 V-0	Black	Bayonet Lock	Keyed	Free Hanging (In-Line)	2	Thermoplastic
SWITCHCRAFT/CONXALL EN2C2F20G3W	250 VAC	Crimp Solder Cup	Unshielded	Backshell Coupling Nut Winged	Gold	Communication Systems Industrial Marine Medical	Copper Alloy	Plug Female Sockets	Plastic	3.5 A	85 °C	-40 C	IP66 IP67 IP68	Elastomer	4.57 mm	0.18 "	5.59 mm	0.22 in	UL94 V-0	Black	Bayonet Lock	Keyed	Free Hanging (In-Line)	2	Thermoplastic
SWITCHCRAFT/CONXALL EN2C2F20DCW	250 VAC	Crimp Solder Cup	Unshielded	Backshell Coupling Nut Winged	Gold	Communication Systems Industrial Marine Medical	Copper Alloy	Plug Female Sockets	Plastic	3.5 A	85 °C	-40 C	IP66 IP67 IP68	Elastomer					UL94 V-0	Black	Bayonet Lock	Keyed	Free Hanging (In-Line)	2	Thermoplastic
SWITCHCRAFT/CONXALL EN2C2F20DC	250 VAC	Crimp Solder Cup	Unshielded	Backshell Coupling Nut	Gold	Communication Systems Industrial Marine Medical	Copper Alloy	Plug Female Sockets	Plastic	3.5 A	85 °C	-40 C	IP66 IP67 IP68	Elastomer					UL94 V-0	Black	Bayonet Lock	Keyed	Free Hanging (In-Line)	2	Thermoplastic

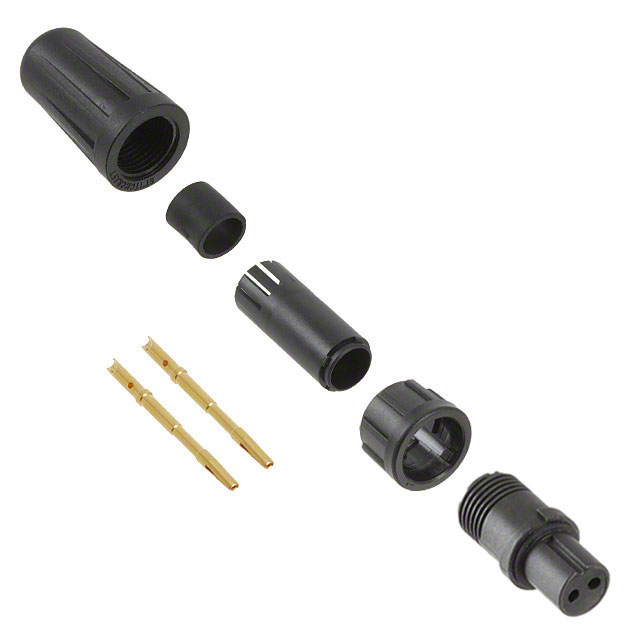

SWITCHCRAFT/CONXALL EN2C2F20G3	250 VAC	Crimp Solder Cup	Unshielded	Backshell Coupling Nut	Gold	Communication Systems Industrial Marine Medical	Copper Alloy	Plug Female Sockets	Plastic	3.5 A	85 °C	-40 C	IP66 IP67 IP68	Elastomer	4.57 mm	0.18 "	5.59 mm	0.22 in	UL94 V-0	Black	Bayonet Lock	Keyed	Free Hanging (In-Line)	2	Thermoplastic
SWITCHCRAFT/CONXALL EN2C2F20G2	250 VAC	Crimp Solder Cup	Unshielded	Backshell Coupling Nut	Gold	Communication Systems Industrial Marine Medical	Copper Alloy	Plug Female Sockets	Plastic	3.5 A	85 °C	-40 C	IP66 IP67 IP68	Elastomer	3.56 mm	0.14 in	4.57 mm	0.18 "	UL94 V-0	Black	Bayonet Lock	Keyed	Free Hanging (In-Line)	2	Thermoplastic
SWITCHCRAFT/CONXALL EN2C2F20G2W	250 VAC	Crimp Solder Cup	Unshielded	Backshell Coupling Nut Winged	Gold	Communication Systems Industrial Marine Medical	Copper Alloy	Plug Female Sockets	Plastic	3.5 A	85 °C	-40 C	IP66 IP67 IP68	Elastomer	3.56 mm	0.14 in	4.57 mm	0.18 "	UL94 V-0	Black	Bayonet Lock	Keyed	Free Hanging (In-Line)	2	Thermoplastic
SWITCHCRAFT/CONXALL EN2C2F20G1W	250 VAC	Crimp Solder Cup	Unshielded	Backshell Coupling Nut Winged	Gold	Communication Systems Industrial Marine Medical	Copper Alloy	Plug Female Sockets	Plastic	3.5 A	85 °C	-40 C	IP66 IP67 IP68	Elastomer	2.54 mm	0.1 "	3.56 mm	0.14 in	UL94 V-0	Black	Bayonet Lock	Keyed	Free Hanging (In-Line)	2	Thermoplastic
