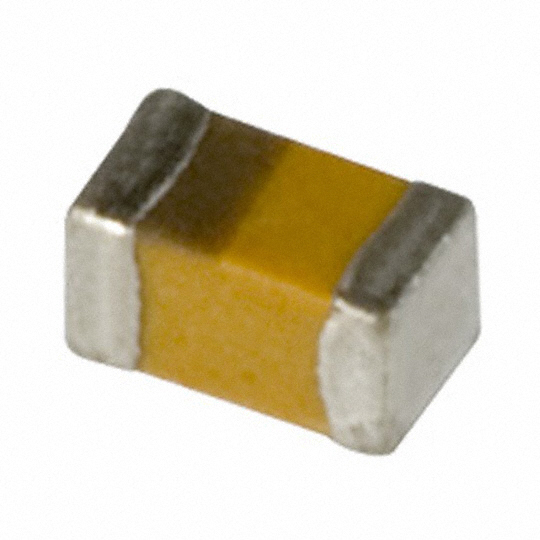

TAC Series

Catalog

TANT SPECIAL - SMP / TAPE/REEL ROHS COMPLIANT: YES

Part	Type	Voltage - Rated	Capacitance	Tolerance	Manufacturer Size Code	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	ESR (Equivalent Series Resistance)	Mounting Type	Package / Case	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
KYOCERA AVX TACL684K010XTA	Molded	10 V	0.68 µF	10 %	L	-55 C	125 °C	0.039 in	1 mm	2000 Hrs	General Purpose	0.033 "	0.063 "	1.6 mm	0.85 mm	7.5 Ohm	Surface Mount	1608 Metric	0603
KYOCERA AVX TACT476K010RTA	Molded	10 V	47 µF	10 %	T	-55 C	125 °C				General Purpose	0.11 "	0.138 in	3.5 mm	2.8 mm	1 Ohms	Surface Mount		1210 1411 (3528 Metric)	1.2 mm	0.047 "
KYOCERA AVX TACK334M010PTA	Molded	10 V	0.33 µF	20 %	K	-55 C	125 °C			2000 Hrs	General Purpose	0.02 in	0.039 "	1 mm	0.5 mm	20 Ohm	Surface Mount		0402 (1005 Metric)	0.7 mm	0.028 "
KYOCERA AVX TACL225M010XTA	Molded	10 V	2.2 µF	20 %	L	-55 C	125 °C	0.039 in	1 mm		General Purpose	0.033 "	0.063 "	1.6 mm	0.85 mm	7.5 Ohm	Surface Mount	1608 Metric	0603
KYOCERA AVX TACR106M010XTA	Molded	10 V	10 µF	20 %	R	-55 C	125 °C	0.059 "			General Purpose	0.053 "	0.079 in	2 mm	1.35 mm	5 Ohm	Surface Mount		0805			1.5 mm
KYOCERA AVX TACA157M002RTA	Molded	2 VDC	150 µF	20 %	A	-55 C	125 °C	0.071 in	1.8 mm		General Purpose	0.063 "	0.126 "	3.2 mm	1.6 mm	1 Ohms	Surface Mount		1206 (3216 Metric)
KYOCERA AVX TACL225M006RTA	Molded	6.3 VDC	2.2 µF	20 %	L	-55 C	125 °C	0.039 in	1 mm	2000 Hrs	General Purpose	0.033 "	0.063 "	1.6 mm	0.85 mm	7.5 Ohm	Surface Mount	1608 Metric	0603
KYOCERA AVX TACH106K010RTA	Molded	10 V	10 µF	10 %	H	-55 C	125 °C	0.039 in	1 mm		General Purpose	0.053 "	0.079 in	2 mm	1.35 mm	5 Ohm	Surface Mount		0805
KYOCERA AVX TACR156M010RTA	Molded	10 V	15 µF	20 %	R	-55 C	125 °C	0.059 "			General Purpose	0.053 "	0.079 in	2 mm	1.35 mm	5 Ohm	Surface Mount		0805			1.5 mm
KYOCERA AVX TACL684K016RTA	Molded	16 V	0.68 µF	10 %	L	-55 C	125 °C	0.039 in	1 mm		General Purpose	0.033 "	0.063 "	1.6 mm	0.85 mm	7.5 Ohm	Surface Mount	1608 Metric	0603
