1761681 Series

Catalog

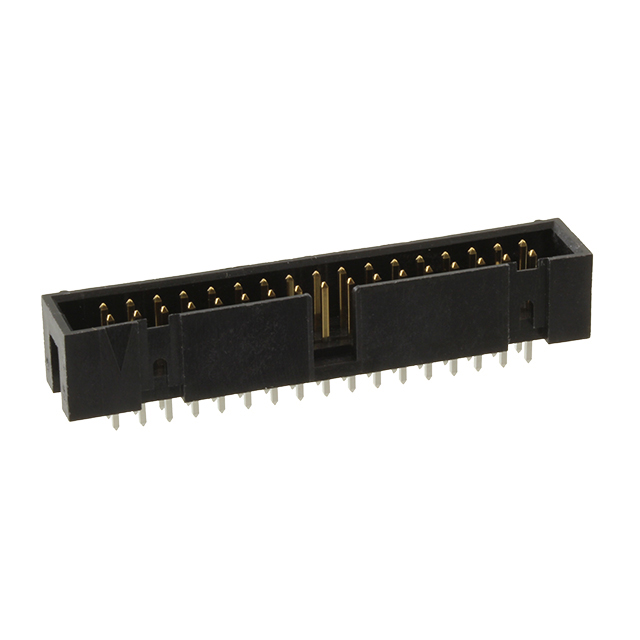

IDC LOW PRO HDR 34P VERT HT BLACK

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Contact Shape	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Contact Material	Number of Positions Loaded	Voltage Rating	Insulation Color	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Style	Number of Positions [custom]	Insulation Material	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Fastening Type	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Contact Finish - Mating	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating [x]	Termination	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Number of Positions
TE Connectivity AMP Connectors 1-1761681-1	2.54 µm	100 µin	Keying Slot	Square	Header	0.114 in	2.9 mm	Male Pin	Phosphor Bronze	All	250 VAC	Black	Tin	105 ░C	-65 ░C	Board to Cable/Wire	34	Polycyclohexylenedimethylene Terephthalate (PCT)	2	0.1 "	2.54 mm	Push-Pull	Shrouded - 4 Wall	0.1 in	2.54 mm	1 A	Gold	UL94 V-0	0.24 in	6.1 mm	Solder	8.89 mm	0.35 in	0.38 µm	15 µin	Through Hole
TE Connectivity AMP Connectors 1-1761681-7	2.54 µm	100 µin	Keying Slot	Square	Header	0.114 in	2.9 mm	Male Pin	Phosphor Bronze	All	250 VAC	Black	Tin	105 ░C	-65 ░C	Board to Cable/Wire		Polycyclohexylenedimethylene Terephthalate (PCT)	2	0.1 "	2.54 mm	Push-Pull	Shrouded - 4 Wall	0.1 in	2.54 mm	1 A	Gold	UL94 V-0	0.24 in	6.1 mm	Solder	8.89 mm	0.35 in	0.38 µm	15 µin	Through Hole	64
