AYF330835 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

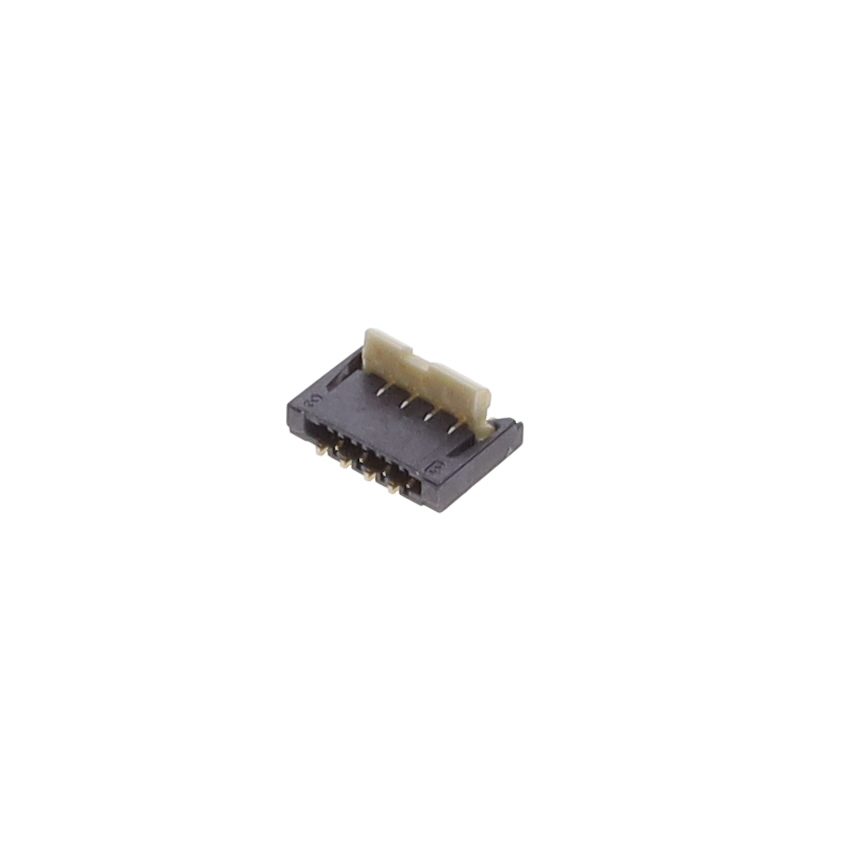

CONN FPC 8POS 0.3MM R/A
| Part | Contact Finish Thickness | Current Rating (Amps) | Mating Cycles | Number of Positions | Housing Material | Material Flammability Rating | Termination | Cable End Type | Contact Finish | Height Above Board [z] | Height Above Board [z] | FFC, FCB Thickness [custom] | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Locking Feature | Actuator Material | Voltage Rating | Mounting Type | Flat Flex Type | Connector/Contact Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | Flash | 200 mA | 20 | 8 | Liquid Crystal Polymer (LCP) | UL94 V-0 | Solder | Tapered | Gold | 0.88 mm | 0.035 in | 0.2 mm | 0.012 in | 0.3 mm | -55 C | 85 °C | Backlock Flip Lock | Liquid Crystal Polymer (LCP) | 50 V | Right Angle Surface Mount | FPC | Contacts Top and Bottom | Copper Alloy |
