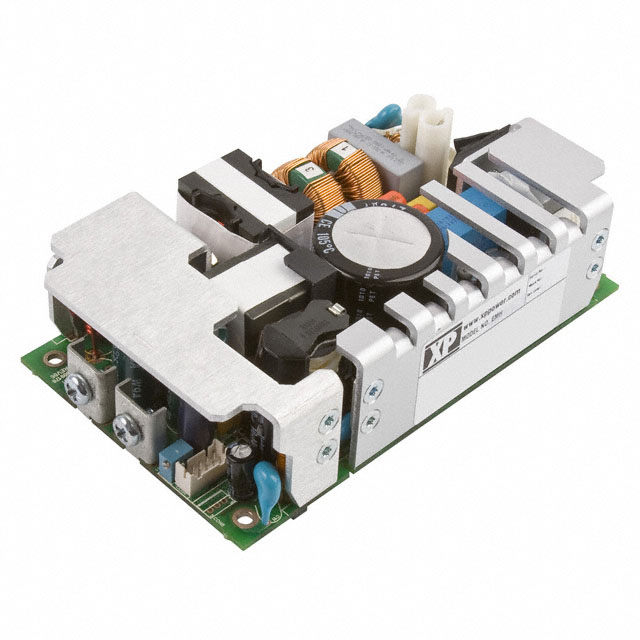

EMH250 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC CONVERTER 24V 250W
| Part | Minimum Load Required | Power (Watts) | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output 1 | Applications | Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Number of Outputs | Standard Number | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Features | Mounting Type | Voltage - Isolation | Efficiency | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 250 W | 80 VAC | 275 VAC | 24 V | ITE (Commercial) Medical | Open Frame | 36.3 mm | 76.2 mm | 5 " | 127 mm | 1.43 in | 3 " | 1 | 62368-1 | CB CE TUV UL | 70 °C | 0 °C | Adjustable Output Load Sharing Remote Sense Standby Output Universal Input | Chassis Mount | 4000 V | 87 % | 10.5 A | |
XP Power | 250 W | 80 VAC | 275 VAC | 12 V | ITE (Commercial) Medical | Open Frame | 36.3 mm | 76.2 mm | 5 " | 127 mm | 1.43 in | 3 " | 1 | 62368-1 | CB CE TUV UL | 70 °C | 0 °C | Adjustable Output Load Sharing Remote Sense Standby Output Universal Input | Chassis Mount | 4000 V | 87 % | 21 A | |
XP Power | 250 W | 80 VAC | 275 VAC | 48 V | ITE (Commercial) Medical | Open Frame | 36.3 mm | 76.2 mm | 5 " | 127 mm | 1.43 in | 3 " | 1 | 62368-1 | CB CE TUV UL | 70 °C | 0 °C | Adjustable Output Load Sharing Remote Sense Standby Output Universal Input | Chassis Mount | 4000 V | 87 % | 5.2 A |
