TX810 Series

Catalog

8-CHANNEL, PROGRAMMABLE T/R SWITCH FOR ULTRASOUND

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Switch Circuit	Number of Channels	Supplier Device Package	On-State Resistance (Max) [Max]	Applications	Multiplexer/Demultiplexer Circuit	Features	Mounting Type	Voltage - Supply, Dual (V±) [Min]	Voltage - Supply, Dual (V±) [Max]	Package / Case	-3db Bandwidth

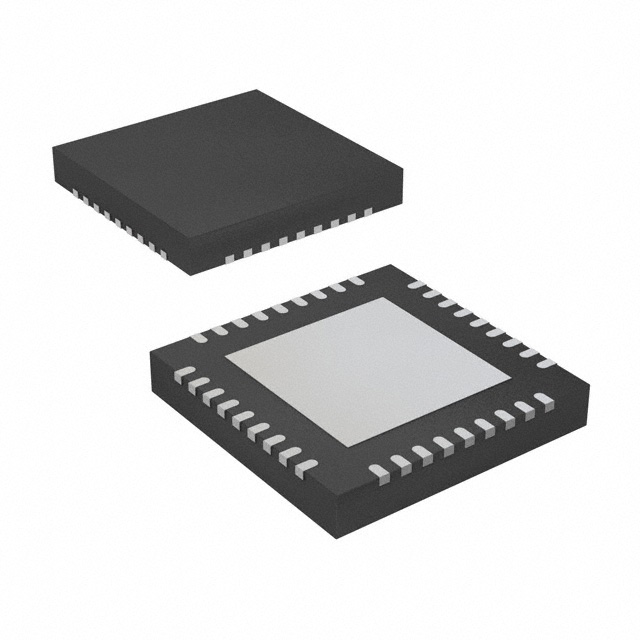

Texas Instruments TX810IRHHT	70 °C	0 °C	5 V	2.5 V	SPST	8	36-VQFN (6x6)	30 Ohm	Ultrasound	1:1	Diode Bridge Programmable Bias Current	Surface Mount	-2.5 V	5 V	36-VFQFN Exposed Pad	140 MHz
Texas Instruments TX810IRHHR	70 °C	0 °C	5 V	2.5 V	SPST	8	36-VQFN (6x6)	30 Ohm	Ultrasound	1:1	Diode Bridge Programmable Bias Current	Surface Mount	-2.5 V	5 V	36-VFQFN Exposed Pad	140 MHz
