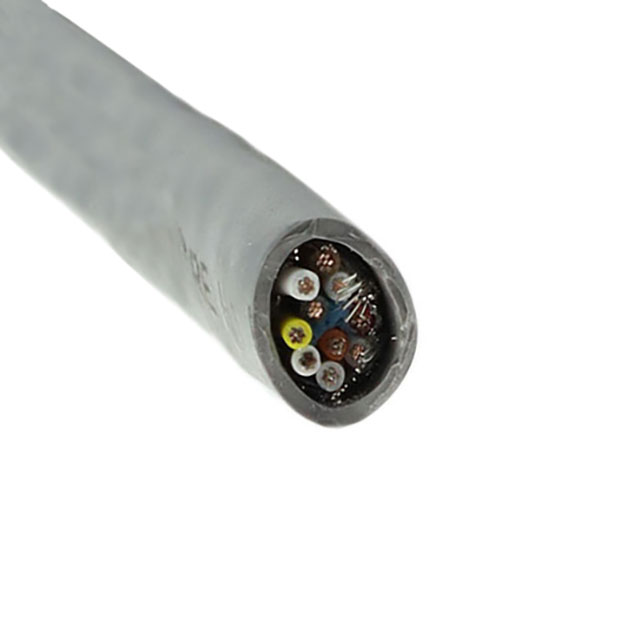

5125C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 10COND 22AWG 1000'
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Ratings | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Usage | Number of Conductors | Shield Type | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Length | Length | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Poly-Vinyl Chloride (PVC) | ISO 10993 | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | 300 VDC | Communication Control | 10 | Braid Foil | Copper Tinned | 8.1 mm | 0.319 " | Biological Compatibility Drain Wire Rip Cord | 304.8 m | 1000 ft | Slate | 30 AWG | 7 | 22 AWG | 0.813 mm | 0.032 in | Multi-Pair | ||
 ALPHA WIRE | 70 % 100 % | Aluminum Suprashield® | Poly-Vinyl Chloride (PVC) | ISO 10993 | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | 300 VDC | Communication Control | 10 | Braid Foil | Copper Tinned | 8.1 mm | 0.319 " | Biological Compatibility Drain Wire Rip Cord | 304.8 m | 1000 ft | Black | 30 AWG | 7 | 22 AWG | 0.813 mm | 0.032 in | Multi-Pair | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Poly-Vinyl Chloride (PVC) | ISO 10993 | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | 300 VDC | Communication Control | 10 | Braid Foil | Copper Tinned | 8.1 mm | 0.319 " | Biological Compatibility Drain Wire Rip Cord | Slate | 30 AWG | 7 | 22 AWG | 0.813 mm | 0.032 in | Multi-Pair | 100 ft | 30.5 m |
