ALCOSWITCH MTL Series

Catalog

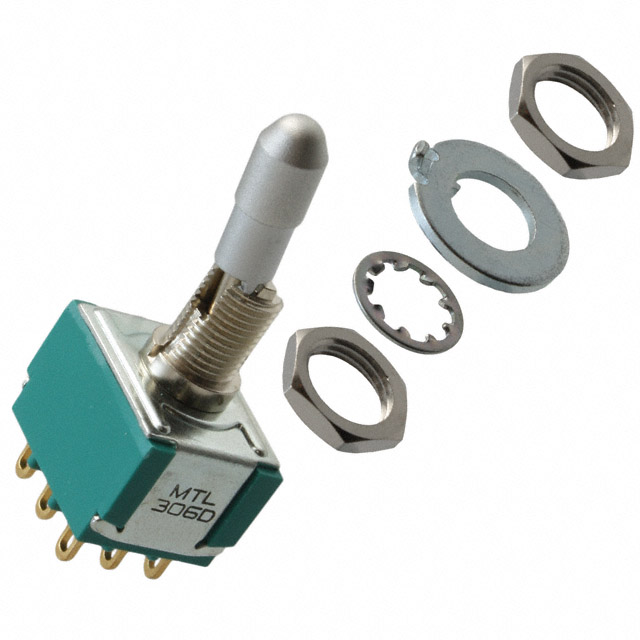

MTL306D=(MSTL) SW TOG LOCKING

Part	Actuator Material	Electrical Life	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Switch Function	Illumination	Bushing Thread	Voltage Rating - DC	Termination Style	Features	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Circuit	Actuator Type	Voltage Rating - AC
TE Connectivity AMP Connectors MTL306D	Brass Nickel Plated	80000 Cycles	6.4 mm	17 mm	On-On	Non-Illuminated	1/4-40	28 V	Solder Lug	Epoxy Sealed Terminals	4 A 6 A	80 °C	-20 ░C	Panel Mount	3PDT	Locking Lever	125 V

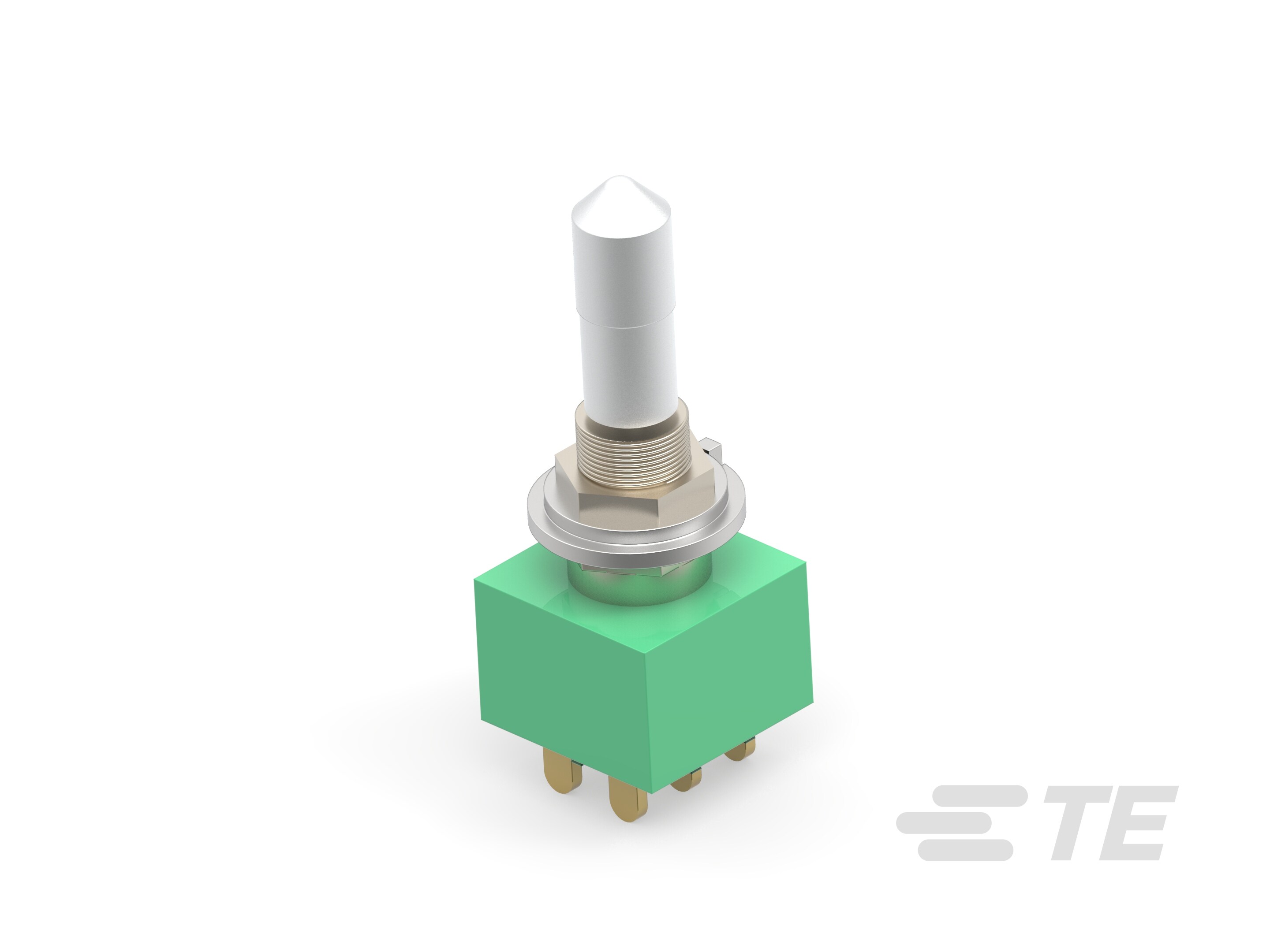

TE Connectivity AMP Connectors MTL206P			6.4 mm	17 mm	On-Off-On	Non-Illuminated	1/4-40	28 V	Solder Lug	Epoxy Sealed Terminals	4 A 6 A	80 °C	-20 ░C	Panel Mount	DPDT	Locking Lever	125 V

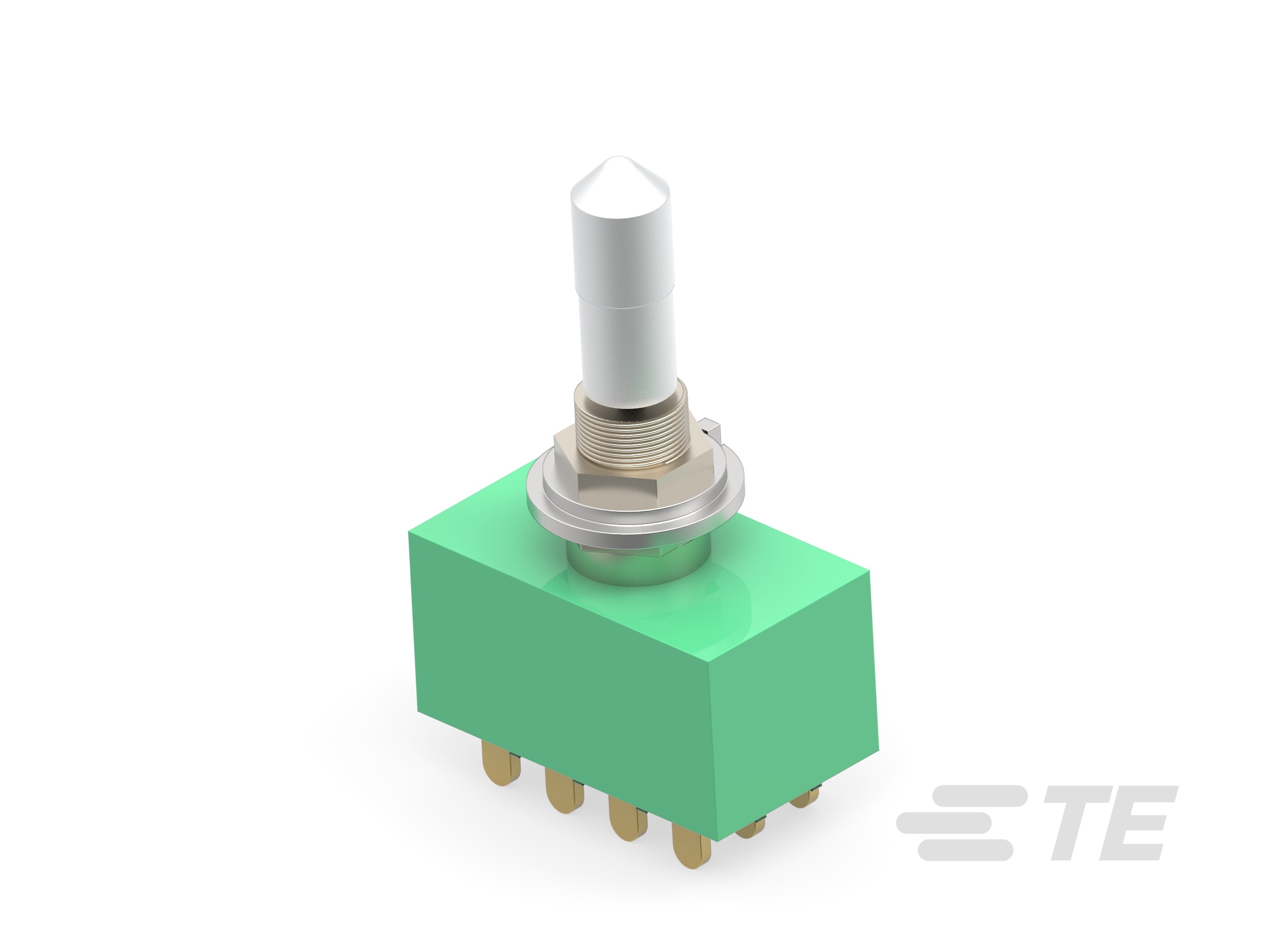

TE Connectivity AMP Connectors MTL406N				17 mm	On-On	Non-Illuminated	1/4-40	28 V	Solder Lug	Epoxy Sealed Terminals	4 A 6 A	80 °C	-20 ░C	Panel Mount	4PDT	Locking Lever	125 V
TE Connectivity AMP Connectors MTL106E	Brass Nickel Plated			17 mm	On-Off-On	Non-Illuminated	1/4-40	28 V	Solder Lug	Epoxy Sealed Terminals	4 A 6 A	80 °C	-20 ░C	Panel Mount	SPDT	Locking Lever	125 V
TE Connectivity AMP Connectors MTL106D	Brass Nickel Plated	80000 Cycles	6.4 mm	17 mm	On-On	Non-Illuminated	1/4-40	28 V	Solder Lug	Epoxy Sealed Terminals	4 A 6 A	80 °C	-20 ░C	Panel Mount	SPDT	Locking Lever	125 V
TE Connectivity AMP Connectors MTL206N			6.4 mm	17 mm	On-On	Non-Illuminated	1/4-40	28 V	Solder Lug	Epoxy Sealed Terminals	4 A 6 A	80 °C	-20 ░C	Panel Mount	DPDT	Locking Lever	125 V
