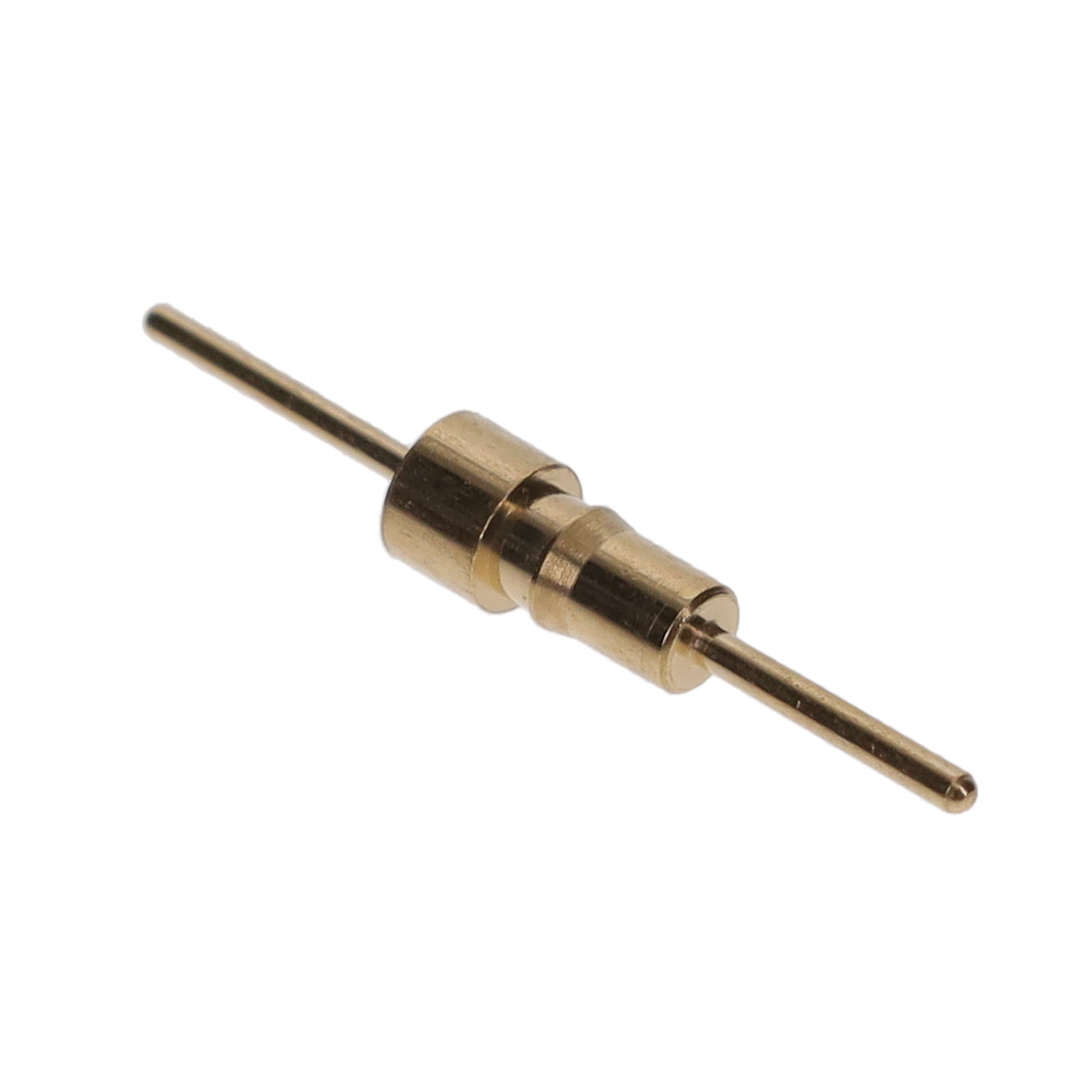

0504-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PIN RCPT
| Part | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Terminal Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Mounting Type | Length - Overall [x] | Length - Overall [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Termination | Insulation | Length - Above Flange | Length - Above Flange | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material | Terminal Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | 0.46 mm | 0.018 in | PC Pin | 200 Áin | 5.08 Ám | Tin | Through Hole | 12.12 mm | 0.477 in | 0.057 " | 1.45 mm | 0.259 in | 6.58 mm | Press-Fit | Non-Insulated | 0.166 in | 4.22 mm | 0.46 mm | 0.018 " | 1.83 mm | 0.072 in | Phosphor Bronze | Double End |
 Mill-Max Manufacturing Corp. | 0.46 mm | 0.018 in | PC Pin | 10 Áin | 0.25 Ám | Gold | Through Hole | 12.12 mm | 0.477 in | 0.057 " | 1.45 mm | 0.259 in | 6.58 mm | Press-Fit | Non-Insulated | 0.166 in | 4.22 mm | 0.46 mm | 0.018 " | 1.83 mm | 0.072 in | Phosphor Bronze | Double End |
Mill-Max Manufacturing Corp. | 0.46 mm | 0.018 in | PC Pin | 50 µin | 1.27 µm | Gold | Through Hole | 12.12 mm | 0.477 in | 0.057 " | 1.45 mm | 0.259 in | 6.58 mm | Press-Fit | Non-Insulated | 0.166 in | 4.22 mm | 0.46 mm | 0.018 " | 1.83 mm | 0.072 in | Phosphor Bronze | Double End |
