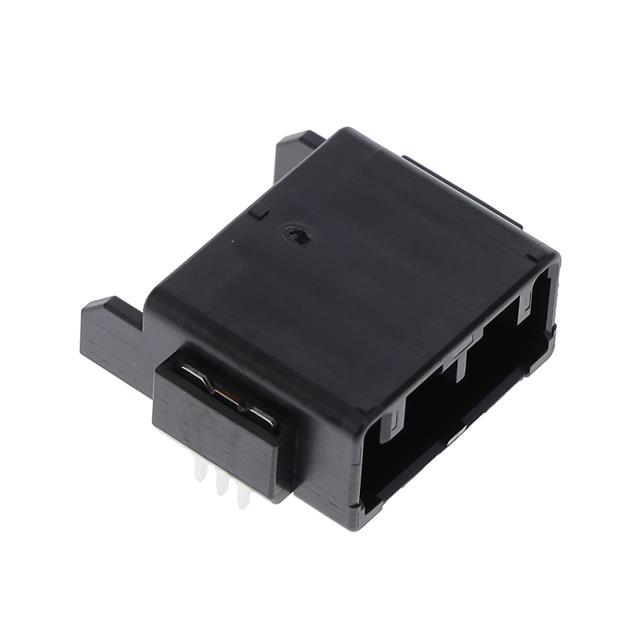

MX34R07H Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN HEADER SMD R/A 7POS 2.2MM
| Part | Applications | Mounting Type | Number of Positions | Number of Rows | Features | Insulation Color | Contact Length - Mating | Contact Length - Mating | Insulation Height | Insulation Height | Fastening Type | Contact Material | Termination | Style | Pitch - Mating | Pitch - Mating | Insulation Material | Contact Shape | Current Rating (Amps) | Contact Type | Connector Type | Shrouding | Number of Positions Loaded | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | Right Angle Surface Mount | 7 | 1 | Solder Retention | Black | 0.303 in | 7.7 mm | 10.7 mm | 0.421 " | Locking Ramp | Copper Alloy | Solder | Board to Cable/Wire | 0.087 in | 2.2 mm | Polyphenylene Sulfide (PPS) Glass Filled | Square | 3 A | Male Pin | Header | Shrouded - 4 Wall | All | Tin | 85 °C | -40 C |
