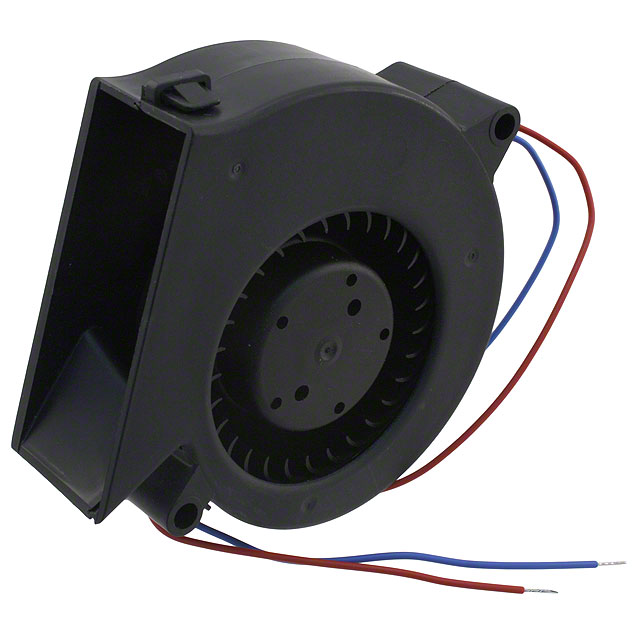

RL48 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
BLOWERS & CENTRIFUGAL FANS DC RADIAL BLOWER, 76X76X27MM, 24VDC, 12.9CFM, 2.9W, 3500RPM, FLATPAK SERIES
| Part | Power (Watts) | Width [y] | Bearing Type | Size / Dimension [x] | Size / Dimension | Size / Dimension [z] | Voltage - Rated | Fan Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | RPM | Air Flow | Air Flow | Noise | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Material - Frame | Material - Blade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 2.9 W | 27 mm | Ball | 75.2 mm | Rectangular/Rounded | 75.5 mm | 24 VDC | Blower | 2 Wire Leads | -20 ░C | 70 °C | 3500 RPM | 12.9 CFM | 0.361 mł/min | 51 dB(A) | |||||
 ebm-papst Inc. | 3.3 W 5 W | 27 mm | Ball | 75.2 mm | Rectangular/Rounded | 75.5 mm | 24 VDC | Blower | 2 Wire Leads | -20 ░C | 70 °C | 4400 RPM | 51 dB(A) | 26.4 VDC | 18 VDC | 40 °C 60000 Hrs | Glass Filled Plastic | Fiberglass Reinforced Plastic |
