PSA.1S Series

Manufacturer: LEMO

Catalog

CONN COAX JACK STR 50 OHM SOLDER

Part	Includes	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Mating Cycles	Connector Type	Cable Group	Mounting Feature	Connector Style	Shield Termination	Mounting Type	Fastening Type	Impedance	Center Contact Material	Contact Termination	Ingress Protection	Shell Size - Insert	Features	Orientation	Insert Material	Material Flammability Rating	Current Rating (Amps)	Contact Material	Contact Finish - Mating	Shielding	Number of Positions	Backshell Material, Plating	Primary Material	Color	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Shell Finish	Shell Material	Number of Ports	Body Material	Body Finish	Housing Color
LEMO PSA.1S.250.ZTL	1 Connector 1 Lockwasher 1 Nut	Polytetrafluoroethylene (PTFE)	-55 C	250 °C	Gold	1000	Receptacle Female Socket	174 174A 178B 188A 196A 316B RG-122	Bulkhead - Rear Side Nut	Coaxial	Clamp	Panel Mount	Push-Pull	50 Ohms	Beryllium Copper	Solder	IP50 - Dust Protected

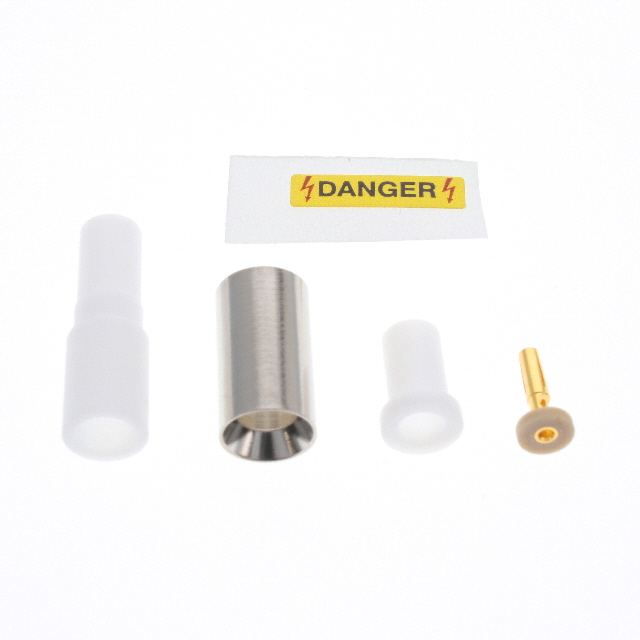

LEMO PSA.1S.405.ZTL41			-55 C	250 °C			Insert Female Sockets										IP50 - Dust Protected	405	Insert Only Requires Shell	Keyed	Polytetrafluoroethylene (PTFE)	UL94 V-0	8 A	Bronze	Gold	Shielded	1
LEMO PSA.1S.304.CLLC62			-55 C	250 °C			Receptacle Female Sockets and Male Pins		Bulkhead - Rear Side Nut			Free Hanging (In-Line) Panel Mount	Push-Pull				IP50 - Dust Protected	304	Backshell	Keyed	Polyetheretherketone (PEEK)	UL94 V-0	10 A	Brass Bronze	Gold	Shielded	4	Brass Chrome	Metal	Silver	0.244 "	0.224 "	5.7 mm	6.2 mm	Chrome	Brass
LEMO PSA.1S.250.ZLL	1 Connector 1 Lockwasher 1 Nut	Polyetheretherketone (PEEK)	-55 C	250 °C	Gold	1000	Receptacle Female Socket	174 174A 178B 188A 196A 316B RG-122	Bulkhead - Rear Side Nut	Coaxial	Clamp	Panel Mount	Push-Pull	50 Ohms	Beryllium Copper	Solder	IP50 - Dust Protected																				1
LEMO PSA.1S.120.ZTL			-55 C	250 °C			Insert Female Sockets										IP50 - Dust Protected	120	Insert Only Requires Shell	Keyed	Polytetrafluoroethylene (PTFE)	UL94 V-0	18 A	Bronze	Gold	Shielded	1
LEMO PSA.1S.902.CLLC52			-55 C	250 °C			Receptacle Female Sockets and Male Pins		Bulkhead - Rear Side Nut			Free Hanging (In-Line) Panel Mount	Push-Pull				IP50 - Dust Protected	902	Backshell	Keyed	Polyetheretherketone (PEEK)	UL94 V-0		Brass Bronze	Gold	Shielded	4	Brass Chrome	Metal	Silver	0.205 in	0.165 "	4.2 mm	5.2 mm	Chrome	Brass
LEMO PSA.1S.306.ZLL			-55 C	250 °C			Insert Female Sockets and Male Pins										IP50 - Dust Protected	306	Insert Only Requires Shell	Keyed	Polyetheretherketone (PEEK)	UL94 V-0	7 A	Brass Bronze	Gold	Shielded	6
LEMO PSA.1S.250.CTLC32	1 Connector 1 Lockwasher 1 Nut	Polytetrafluoroethylene (PTFE)	-55 C	250 °C	Gold	1000	Receptacle Female Socket	174 174A 178B 188A 196A 316B RG-122	Bulkhead - Rear Side Nut	Coaxial	Clamp	Panel Mount	Push-Pull	50 Ohms	Beryllium Copper	Solder	IP50 - Dust Protected																					Brass	Chrome	Silver

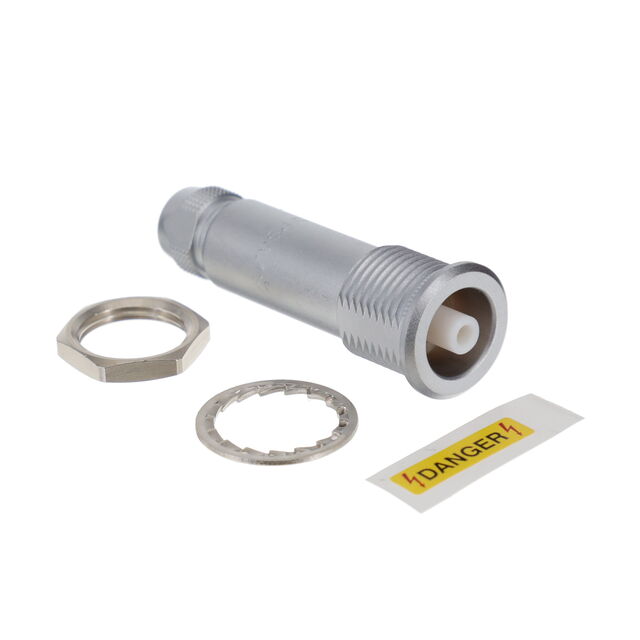

LEMO PSA.1S.405.CTLC62			-55 C	250 °C			Receptacle Female Sockets		Bulkhead - Rear Side Nut			Free Hanging (In-Line) Panel Mount	Push-Pull				IP50 - Dust Protected	405	Backshell	Keyed	Polytetrafluoroethylene (PTFE)	UL94 V-0	8 A	Bronze	Gold	Shielded	1	Brass Chrome	Metal	Silver	0.244 "	0.224 "	5.7 mm	6.2 mm	Chrome	Brass
LEMO PSA.1S.405.ZLL41			-55 C	250 °C			Insert Female Sockets										IP50 - Dust Protected	405	Insert Only Requires Shell	Keyed	Polyetheretherketone (PEEK)	UL94 V-0	8 A	Bronze	Gold	Shielded	1
