2390877 Series

Catalog

3P, RAST 5 TAB HEADER, THV

Part	Style	Number of Positions Loaded	Connector Type	Contact Finish - Post	Contact Type	Termination	Material Flammability Rating	Features	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Number of Rows	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Height	Insulation Height	Fastening Type	Insulation Material	Mounting Type

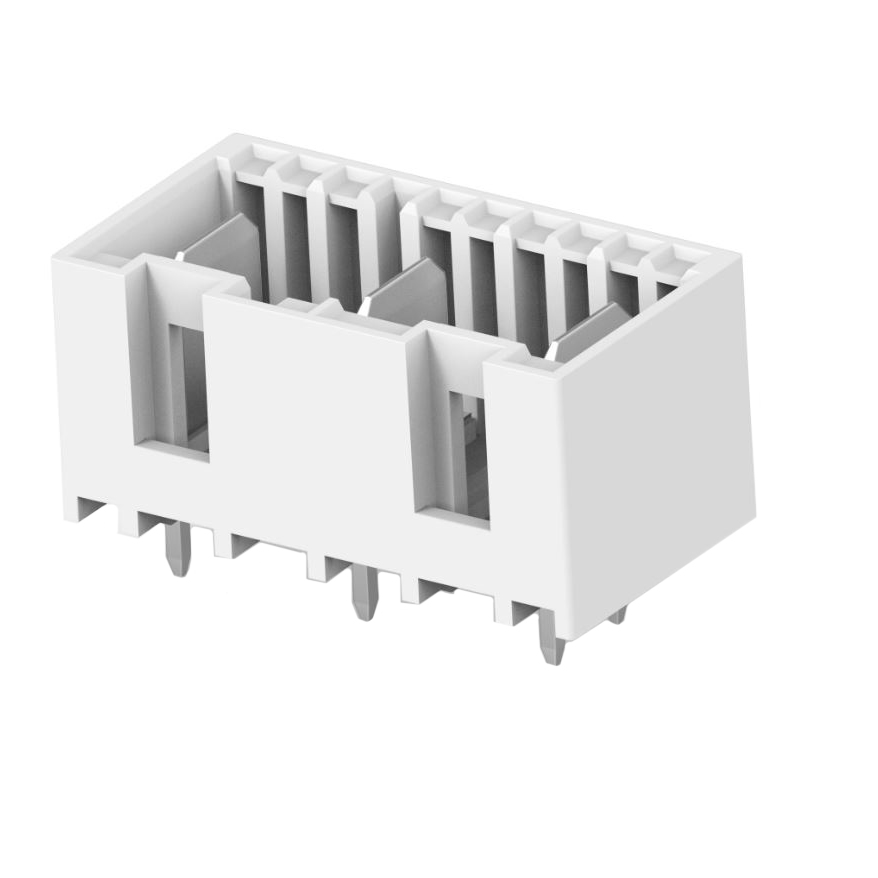

TE Connectivity Raychem Cable Protection 2390877-5	Board to Cable/Wire	All	Header	Tin	Tab	Solder	UL94 V-0	Board Guide Glow Wire Compliant	20 A	5 mm	0.197 "	Shrouded - 4 Wall	-40 °C	120 °C	Rectangular	78.7 µin	2 µm	250 VAC	1	Natural	3.5 mm	0.138 in	2 çm	78.7 çin	Copper Alloy	12.8 mm	0.504 in	Detent Lock	Nylon Polyamide (PA)	Through Hole

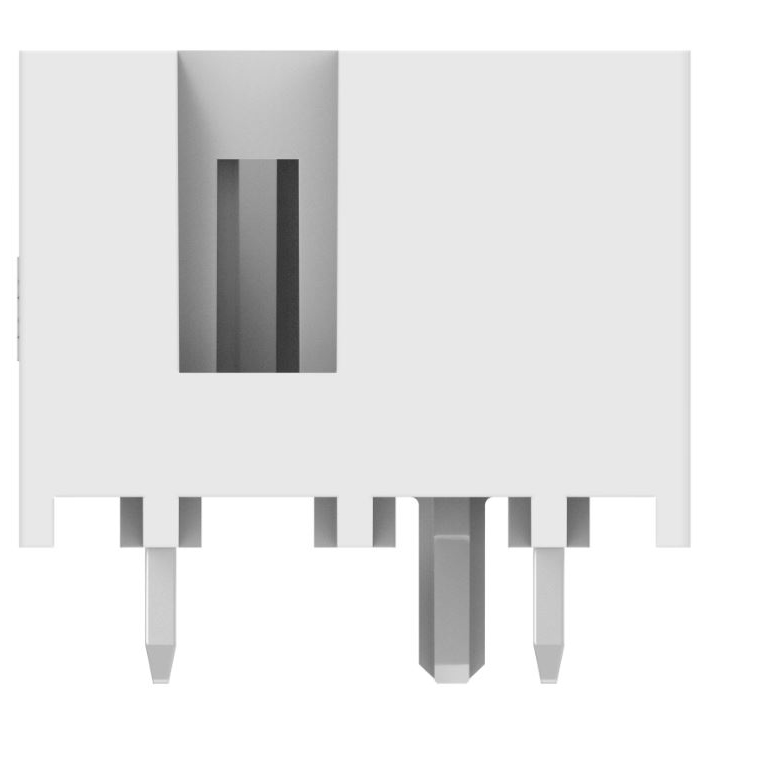

TE Connectivity Raychem Cable Protection 4-2390877-3	Board to Cable/Wire	All	Header	Tin	Tab	Solder	UL94 V-0	Board Guide Glow Wire Compliant	20 A	5 mm	0.197 "	Shrouded - 4 Wall	-40 °C	120 °C	Rectangular	78.7 µin	2 µm	250 VAC	1	Natural	3.5 mm	0.138 in	2 çm	78.7 çin	Copper Alloy	12.8 mm	0.504 in	Detent Lock	Nylon Polyamide (PA)	Through Hole
