PPPC381 Series

Catalog

CONN HDR 38POS 0.1 GOLD SMD

Part	Contact Material	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Finish - Post	Termination	Pitch - Mating	Pitch - Mating	Number of Rows	Voltage Rating	Mounting Type	Number of Positions	Contact Finish Thickness - Mating	Contact Type	Connector Type	Fastening Type	Number of Positions Loaded	Contact Finish - Mating	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Length - Post	Contact Length - Post

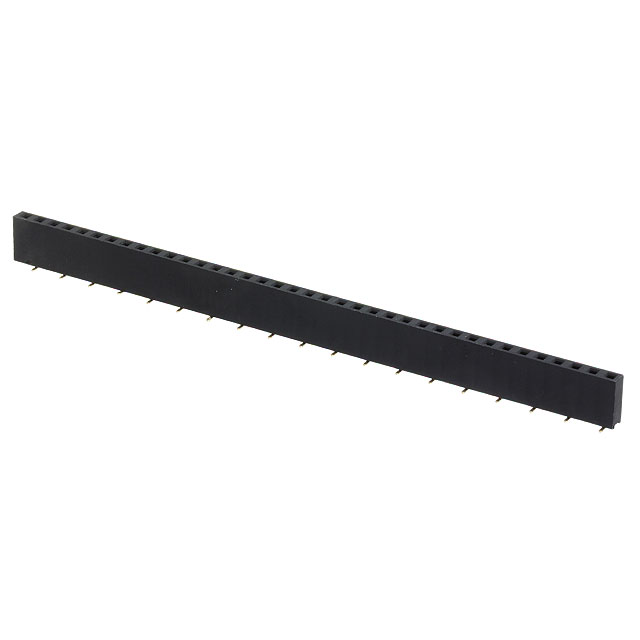

Sullins Connector Solutions PPPC381KFXC	Phosphor Bronze	Polyester	Square	Flash	Black	-40 C	105 ░C	UL94 V-0	Gold	Solder	0.1 "	2.54 mm	1	250 V	Surface Mount	38	Flash	Female Socket	Header Top or Bottom Entry	Push-Pull	All	Gold	0.28 in	7.1 mm	3 A

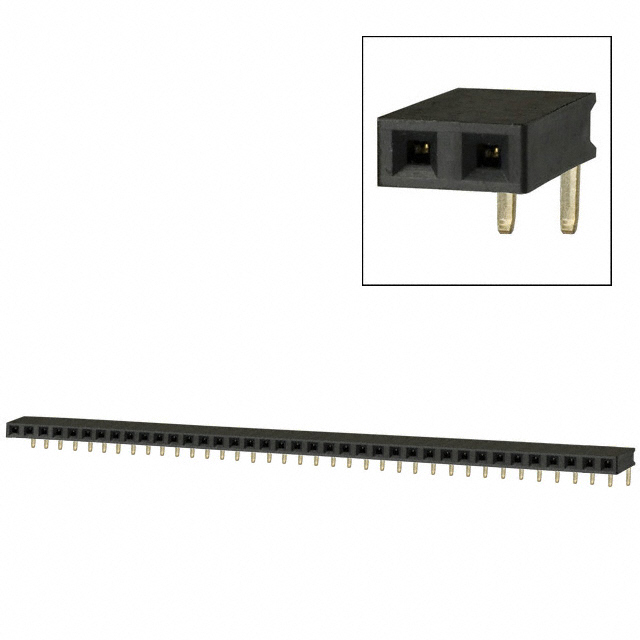

Sullins Connector Solutions PPPC381LGBN-RC	Phosphor Bronze	Polyester	Square	Flash	Black	-40 C	105 ░C	UL94 V-0	Gold	Solder	0.1 "	2.54 mm	1	250 V	Right Angle Through Hole	38	Flash	Female Socket	Header	Push-Pull	All	Gold	0.1 in	2.54 mm	3 A	0.124 in	3.15 mm
Sullins Connector Solutions PPPC381LGBN	Phosphor Bronze	Polyester	Square	Flash	Black	-40 C	105 ░C	UL94 V-0	Gold	Solder	0.1 "	2.54 mm	1	250 V	Right Angle Through Hole	38	Flash	Female Socket	Header	Push-Pull	All	Gold	0.1 in	2.54 mm	3 A	0.124 in	3.15 mm
