73090 Series

Catalog

CONN BANANA PLUG M 1 POS ST CABLE MOUNT 1 PORT

Part	Contact Material	Body Material	Contact Finish	Features	Plug/Mating Plug Diameter	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Type	Mounting Type	Insulation	Gender	Color

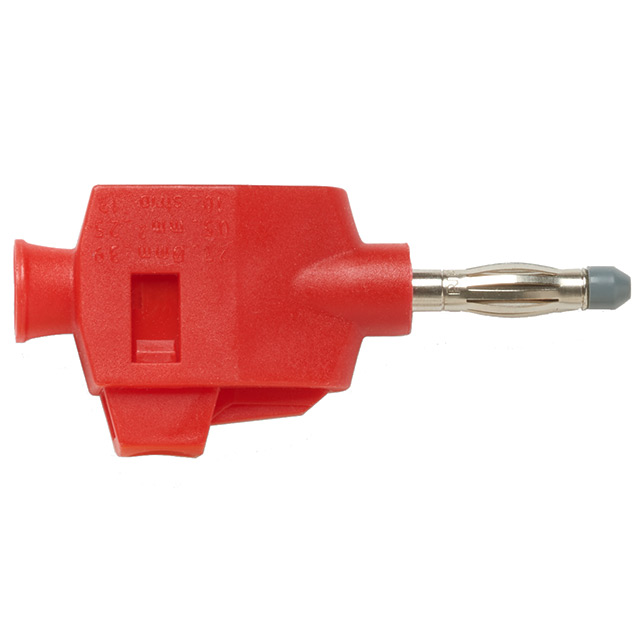

Pomona Electronics 73090-2	Brass Steel	Polyoxymethylene (POM) Polypropylene (PP)	Nickel	Push Button Tab	Standard Banana	22 AWG	17.5 AWG	Solderless	Banana Plug	Free Hanging (In-Line)	Non-Mating End Insulated	Male	Red

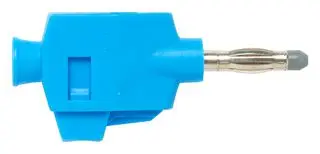

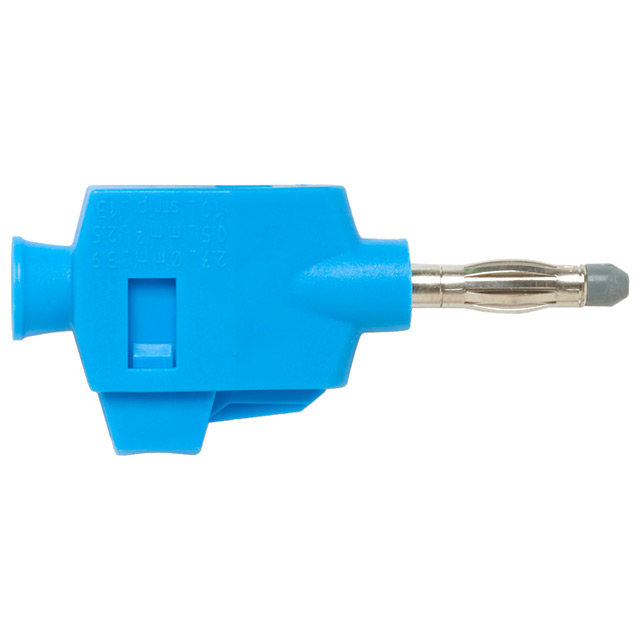

Pomona Electronics 73090-6	Brass Steel	Polyoxymethylene (POM) Polypropylene (PP)	Nickel	Push Button Tab	Standard Banana	22 AWG	17.5 AWG	Solderless	Banana Plug	Free Hanging (In-Line)	Non-Mating End Insulated	Male	Blue

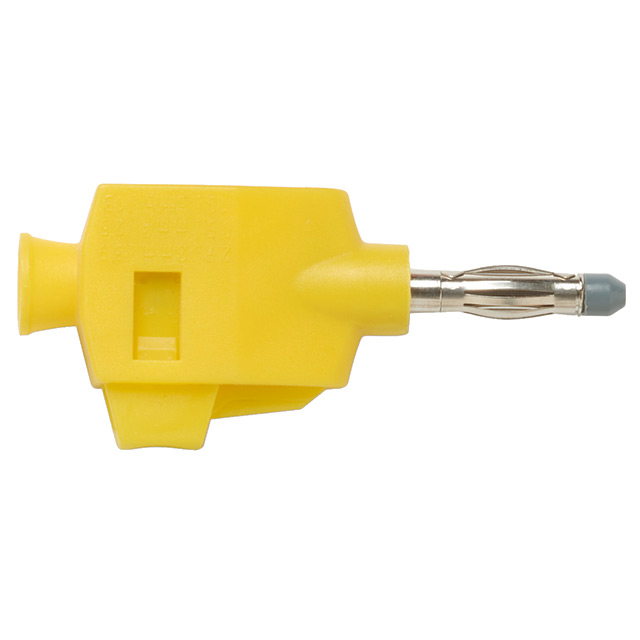

Pomona Electronics 73090-4	Brass Steel	Polyoxymethylene (POM) Polypropylene (PP)	Nickel	Push Button Tab	Standard Banana	22 AWG	17.5 AWG	Solderless	Banana Plug	Free Hanging (In-Line)	Non-Mating End Insulated	Male	Yellow

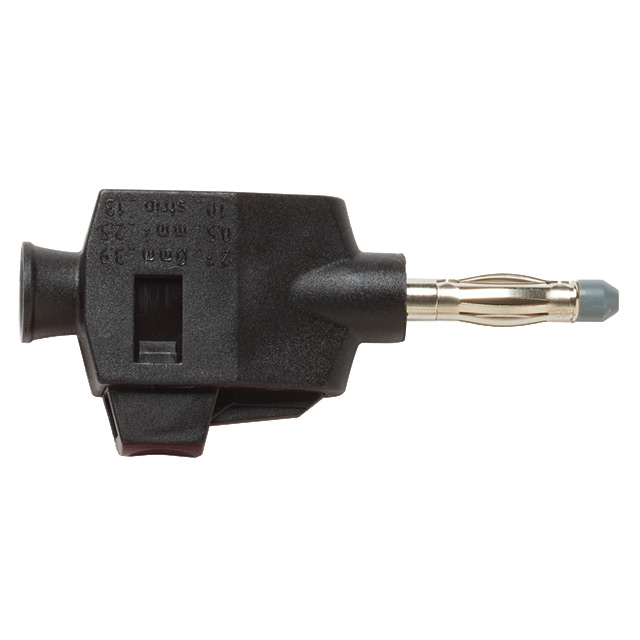

Pomona Electronics 73090-0	Brass Steel	Polyoxymethylene (POM) Polypropylene (PP)	Nickel	Push Button Tab	Standard Banana	22 AWG	17.5 AWG	Solderless	Banana Plug	Free Hanging (In-Line)	Non-Mating End Insulated	Male	Black

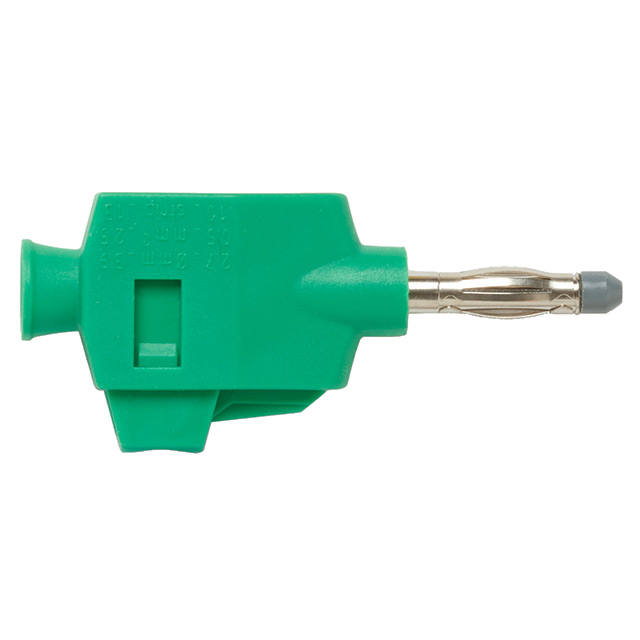

Pomona Electronics 73090-5	Brass Steel	Polyoxymethylene (POM) Polypropylene (PP)	Nickel	Push Button Tab	Standard Banana	22 AWG	17.5 AWG	Solderless	Banana Plug	Free Hanging (In-Line)	Non-Mating End Insulated	Male	Green
Pomona Electronics 73090-9	Brass Steel	Polyoxymethylene (POM) Polypropylene (PP)	Nickel	Push Button Tab	Standard Banana	22 AWG	17.5 AWG	Solderless	Banana Plug	Free Hanging (In-Line)	Non-Mating End Insulated	Male	White
