| Part | Circuit | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Mechanical Life | Operating Force | Actuator Type | Voltage Rating - DC | Differential Travel | Differential Travel | Release Force | Voltage Rating - AC | Electrical Life | Overtravel | Overtravel | Termination Style | Ingress Protection | Mounting Type | Operating Position | Operating Position | Pretravel | Pretravel | Switch Function | Operating Force [Max] | Operating Force [Min] | Overtravel [custom] | Overtravel [custom] | Differential Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

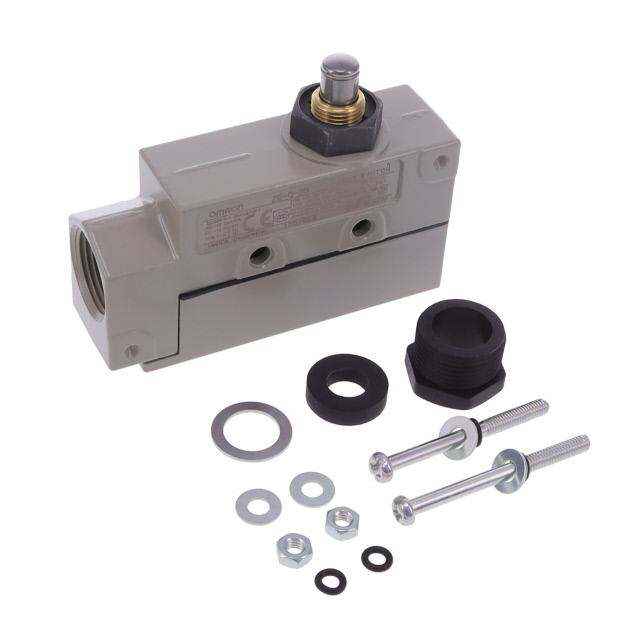

 Omron Automation and Safety | SPDT | 15 A 500 mA | -10 °C | 80 °C | 10000000 Cycles | 800 gf | Round (Pin Plunger) | 125 VDC | 0.1 mm | 0.004 in | 240 gf | 125 V | 500000 Cycles | 0.197 " | 5 mm | Screw Terminal | IP65 - Dust Tight Water Resistant | Chassis Mount | 45.8 mm | 1.805 in | 2 mm | 0.08 in | On-Mom | |||||
 Omron Automation and Safety | SPDT | 15 A 500 mA | -10 °C | 80 °C | 10000000 Cycles | Round (Pin Plunger) | 125 VDC | 0.05 mm | 0.002 in | 114 gf | 125 V | 500000 Cycles | Screw Terminal | IP60 | Chassis Mount | 38.1 mm | 1.5 in | 0.4 mm | 0.015 " | On-Mom | 350 gf | 250 gf | 0.217 " | 5.5 mm | ||||
 Omron Automation and Safety | SPDT | 15 A 500 mA | -10 °C | 80 °C | 10000000 Cycles | 0.5 kgf | Cross Roller Plunger | 125 VDC | 0.005 in | 125 V | 500000 Cycles | Screw Terminal | IP65 - Dust Tight Water Resistant | Chassis Mount | 49.7 mm | 1.957 in | 1 mm | 0.04 in | On-Mom | 0.138 " | 3.5 mm | 0.13 mm |
