123-6 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

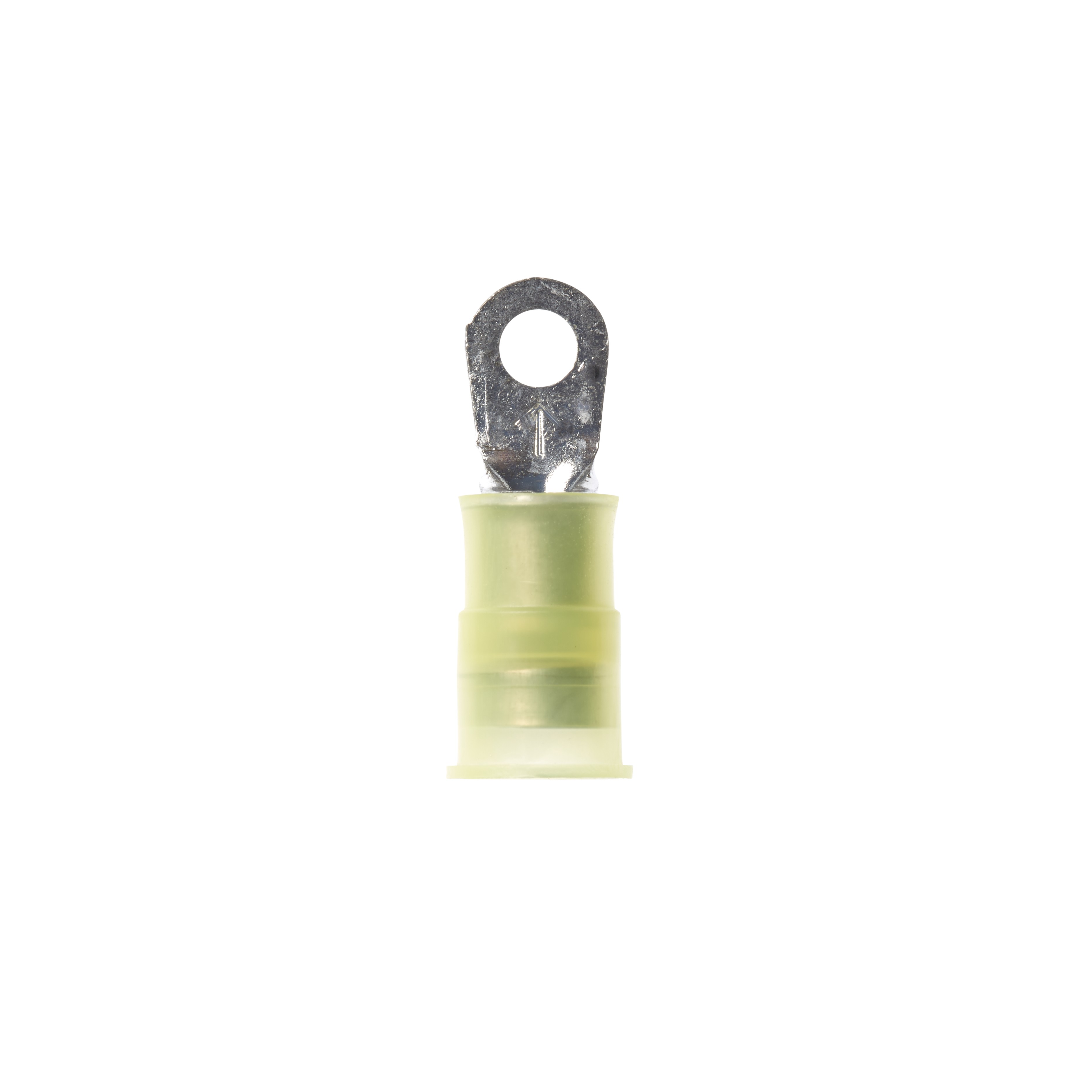

16-12 AWG H/D NYLON INSULATED W/INSULATION GRIP RING TONGUE TE
| Part | Material - Insulation | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Insulation | Contact Material | Width - Outer Edges [x] | Width - Outer Edges [x] | Stud/Tab Size | Termination | Terminal Type | Length - Overall [x] | Length - Overall [x] | Features | Thickness | Thickness | Contact Finish | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | Nylon Polyamide (PA) | 6.35 mm | 0.25 in | Insulated | Copper ETP | 7.11 mm | 0.28 in | 6 Stud | Crimp | Circular | 0.98 in | 24.89 mm | Butted Seam Heavy Duty | 50 mils | 0.05 in | Tin | Free Hanging (In-Line) | 16 AWG | 12 AWG |
